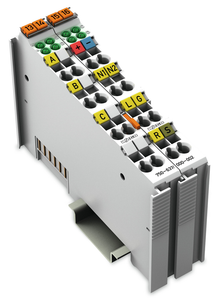

WAGO 750-637/000-004

SKU:

750-637/000-004

UPC:

MPN:

750-637/000-004

Condition:

New

color:

Light gray

commands:

Reading, setting, activating

conformity marking:

CE

connection technology inputs outputs:

16 x CAGE CLAMP

connection type 1:

Inputs/outputs

counter depth:

32 bits

country of origin sales organisation germany:

DE

data width:

1 x 32-bit data 2 x 8-bit control/status

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

2.124 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

input current typ:

Latch 5 mA, Gate 7 mA, Ref. 7 mA

isolation:

500 V system/field

limit frequency:

250 kHz

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

operating altitude:

0 2000 m

output current:

Short-circuit-protected

output current per channel:

0.5 A

output voltage:

24 VDC

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

110 mA

power consumption field supply module with no external load:

35 mA

protection type:

IP20

quadrature decoder:

4x evaluation

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage system:

5 VDC: via data contacts

supply voltage transmitter:

24 VDC

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

transmitter connection:

A, B, C

transmitter supply current max:

300 mA

vibration resistance:

4g per IEC 60068-2-6

voltage range for signal 0:

3 +5 VDC

voltage range for signal 1:

15 30 VDC

weight:

98.000 g

width:

24 mm / 0.945 inch

zero impulse latch:

32 bits
