Wago

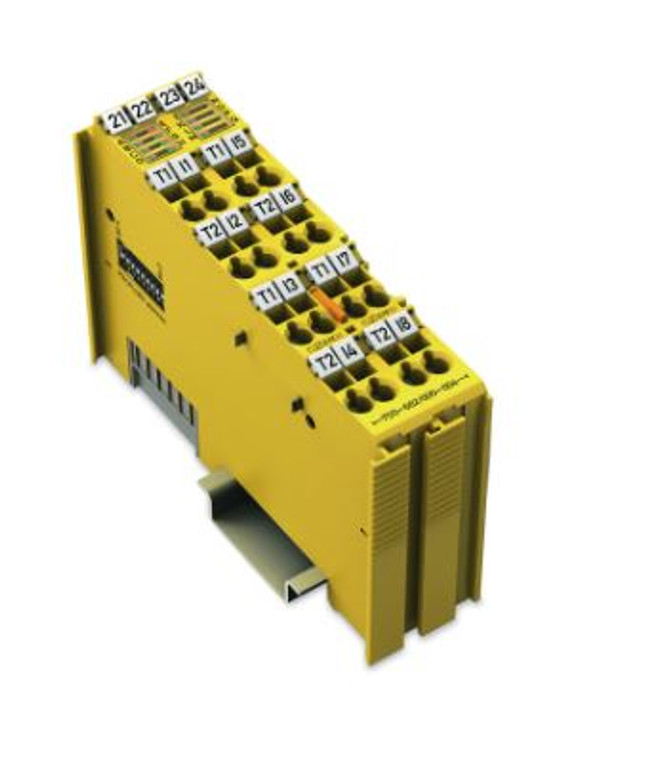

WAGO 750-662/000-004

SKU:

750-662/000-004

UPC:

MPN:

750-662/000-004

Condition:

New

achievable safety classes:

SIL 3: Category 4, PLe (two-channel): SIL 2: Category 2: PLd (one-channel)

ambient temperature operation:

0 €¦ +55 °C

configuration options:

PROFIsafe address adjustable via DIP switch or engineering software

conformity marking:

CE

connection technology inputs outputs:

16 x CAGE CLAMP®

connection type 1:

Inputs/outputs

COUNTRY OF ORIGIN VKORG GERMANY:

DE

CURRENT CARRYING CAPACITY POWER JUMPER CONTACTS:

0.416666666666667

CURRENT CONSUMPTION 5 V SYSTEM SUPPLY:

120 mA

CURRENT CONSUMPTION FIELD SUPPLY MODULE WITH NO EXTERNAL LOAD:

35 mA

CUSTOMS TARIFF NUMBER VKORG GERMANY:

85389099990

DEPTH:

67.8 mm / 2.669 inches

DEPTH FROM UPPER EDGE OF DIN RAIL:

60.6 mm / 2.386 inches

EMC EMISSION OF INTERFERENCE:

Per EN 61000-6-3, -4

EMC IMMUNITY TO INTERFERENCE:

Per EN 61000-6-2, marine applications, EN 61000-6-7 (FS)

EXPOSURE TO POLLUTANTS:

Per IEC 60068-2-42 and IEC 60068-2-43

FINE STRANDED CONDUCTOR:

0.08 €¦ 2.5 mm² / 28 €¦ 14 AWG

FIRE LOAD:

1.931 MJ

HEIGHT:

100 mm / 3.937 inches

HOUSING MATERIAL:

Polycarbonate

INDICATORS:

LED (A-D) green/red: Status/Error I1 €¦ I8

INPUT CHARACTERISTIC:

Clock sensitive || Type 1 per IEC 61131

INPUT CURRENT PER CHANNEL FOR SIGNAL 1 TYP:

3.0 mA

INTERFACE TYPES ACCORDING TO ZVEI INPUTS:

Drain

MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:

MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=

MISMATING PROTECTION:

MOUNTING NOTE=

MOUNTING POSITION:

Horizontal (standing/lying)

MOUNTING TYPE:

DIN-35 rail

NUMBER OF INCOMING POWER JUMPER CONTACTS:

2

NUMBER OF OUTGOING POWER JUMPER CONTACTS:

2

OPERATING ALTITUDE:

0 €¦ 2000 m / 0 €¦ 6562 ft

OUTPUT CURRENT PER CHANNEL:

0.1 A

PERMISSIBLE H2S CONTAMINANT CONCENTRATION AT A RELATIVE HUMIDITY 75:

10 ppm

PERMISSIBLE SO2 CONTAMINANT CONCENTRATION AT A RELATIVE HUMIDITY 75:

25 ppm

PLUGGABLE CONNECTOR:

Fixed

POLLUTION DEGREE 5:

2 per IEC 61131-2

PRODUCT GROUP CODE:

15

PROTECTION TYPE:

IP20

RELATIVE HUMIDITY WITHOUT CONDENSATION:

0.95

SAFETY STANDARDS:

IEC 61508-1 €¦ -7

SHOCK RESISTANCE:

15g per IEC 60068-2-27

SIGNAL FREQUENCY MAX:

50 Hz

SIGNAL TYPE:

Voltage

SIGNAL TYPE VOLTAGE:

24 VDC

SOLID CONDUCTOR:

0.08 €¦ 2.5 mm² / 28 €¦ 14 AWG

STRIP LENGTH:

8 €¦ 9 mm / 0.31 €¦ 0.35 inches

SUPPLY VOLTAGE FIELD:

24 VSELV/PELV DC (-25 €¦ +30 %)

SUPPLY VOLTAGE SYSTEM:

5 VDC

SURROUNDING AIR TEMPERATURE STORAGE:

-25 €¦ +85 °C

TOTAL NUMBER OF CHANNELS MODULE:

8

VIBRATION RESISTANCE:

4g per IEC 60068-2-6

WEIGHT:

96.517 g

WIDTH:

24 mm / 0.945 inches
