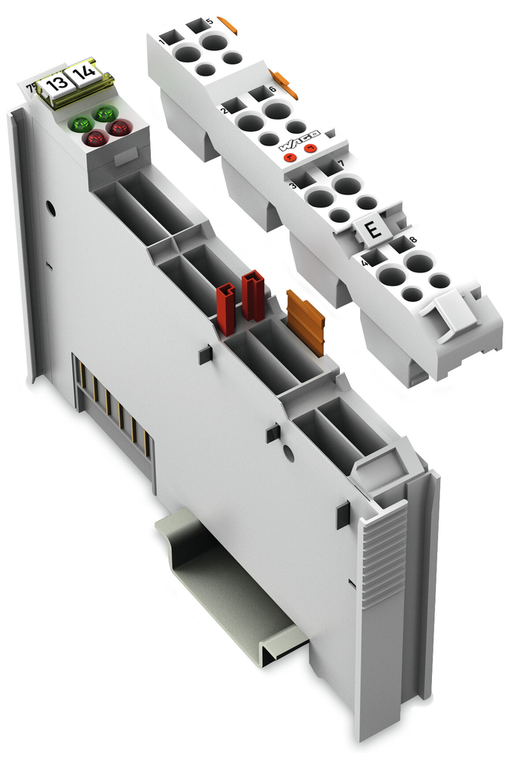

WAGO 753-424

(No reviews yet) Write a Review

Write a Review

WAGO 753-424

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

753-424

UPC:

MPN:

753-424

Condition:

New

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

data width:

4-bit input: 2-bit data, 2-bit error (short circuit/wire break)

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

1.030 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (A, C) green: Status DI 1, DI 2: LED (B, D) red: Error DI 1, DI 2

input data width internal max:

4 bits

isolation:

500 V system/field

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

note:

Pluggable connectors and coding fingers (753 Series) are not included.

number of digital inputs:

2

number of incoming power jumper contacts:

3

number of outgoing power jumper contacts:

3

operating altitude:

0 2000 m

output current per channel:

0.001 A

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

6 mA

power consumption field supply module with no external load:

16 mA

protection type:

IP20

relative humidity without condensation:

0.95

sensor connection:

2 x (2-wire)

shock resistance:

15g per IEC 60068-2-27

signal type:

Current loop (intruder detection)

solid conductor:

0.08 2.5 mm / 28 14 AWG

specific sensor properties:

Alarm contact: R1 = 1.5 k (5 %): R2 = 2.2 k (5 %): Conductor resistance (R wire): 200 (max.)

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage field:

24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage sensor:

24 VDC

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

total number of channels module:

2

vibration resistance:

4g per IEC 60068-2-6

weight:

40.000 g

width:

12 mm / 0.472 inch

wiring interface:

Pluggable
