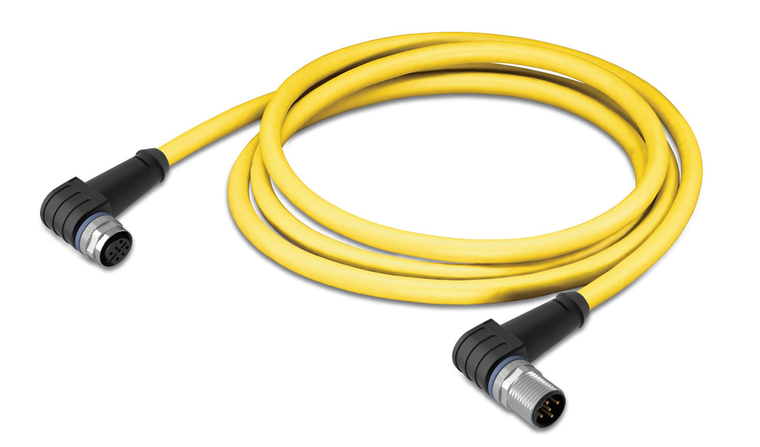

WAGO 756-1306/060-100

SKU:

756-1306/060-100

UPC:

MPN:

756-1306/060-100

Condition:

New

bending radius:

5 x cable diameter (min.)

cable connection direction to mating direction:

90

cable connection direction to mating direction 2:

90

cable length:

10 m

color:

Yellow

conductor design:

Bare copper wire (26/7 AWG)

conductor insulation:

Zell-PE: Core : 1.0 mm (max.)

conductor resistance:

145 /km

connection type:

M12 socket - M12 plug

connector interface coding cable adapter 1 1:

B-coded

connector interface coding cable adapter 2 1:

B-coded

contact material:

CuZn

contact plating:

CuNi/Au

contact resistance:

10 m

country of origin sales organisation germany:

DE

fire load:

0.000 MJ

housing material:

TPU/TPU, black (~ RAL 9005)

insulation resistance:

5000 M

material properties of the connections:

Hexagon knurled nut: CuZn: Knurled nut surface: nickel-plated: Sealing ring: FPM (Viton)

mating cycles max:

100

operating current:

0.166666666666667

operating voltage:

60 V

packaging type:

Box

plc manufacturer:

WAGO

pole no:

5

pollution degree 5:

3/2 per IEC 60664-1

protection type:

IP67

rated surge voltage:

1.5 kV per IEC 61076-2-101

sheathed cable diameter:

6 mm

shield:

Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 %

surrounding air temperature operation:

-25 60 C

tightening torque:

1 Nm

type code:

KS-02YS(ST+C)11Y 4x2xAWG26/7-100 , shielded

weight:

412.000 g
