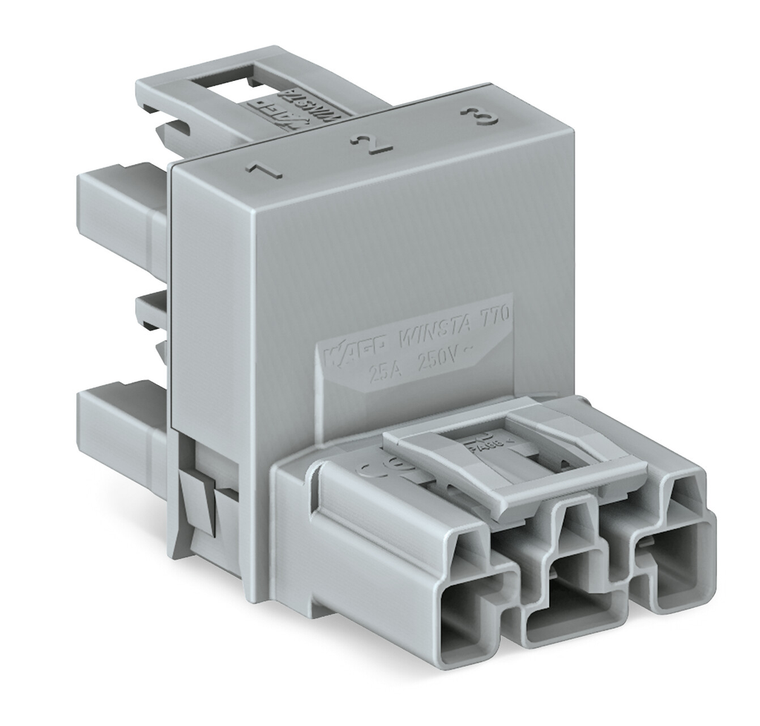

WAGO 770-1761

(No reviews yet) Write a Review

Write a Review

×

WAGO 770-1761

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

770-1761

Condition:

New

application:

Measurement and regulation technology

coding:

B

color:

Gray

contact material:

Copper or copper alloy (surface-treated)

continuous operating temperature:

-35 +85 C

country of origin sales organisation germany:

DE

depth:

51 mm / 2.008 inch

distributor type:

H-distribution connector (unidirectional)

fire load:

0.413 MJ

height:

32.7 mm / 1.287 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

locking lever:

Yes

locking of plug in connection:

Locking lever

marking:

1 2 3

mating force of a plug in connection:

Approx. 20 70 N (depending on pole number)

mismating protection:

Yes

nominal voltage iii 3:

250 V

note on continuous operating temperature:

Insulating parts for temperatures ¤ 105 C

note on mismating protection:

All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole

number of locking levers:

3

number of mating cycles:

200, without resistive load

packaging type:

Box

pin spacing:

10 mm / 0.394 inch

pole no:

3

processing temperature:

-5 +40 C

protection class:

IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

rated current:

25 A

rated current ul 1977:

23 A

rated surge voltage iii 3:

4 kV

rated voltage ul 1977:

600 V

ratings per:

IEC/EN 60664-1

retention force of a plug in connection:

When locked: > 80 N

suitable:

For flying leads

unmating force of a plug in connection:

Unlocked: approx. 20 70 N (depending on pole number)

weight:

22.788 g

width:

30 mm / 1.181 inch
