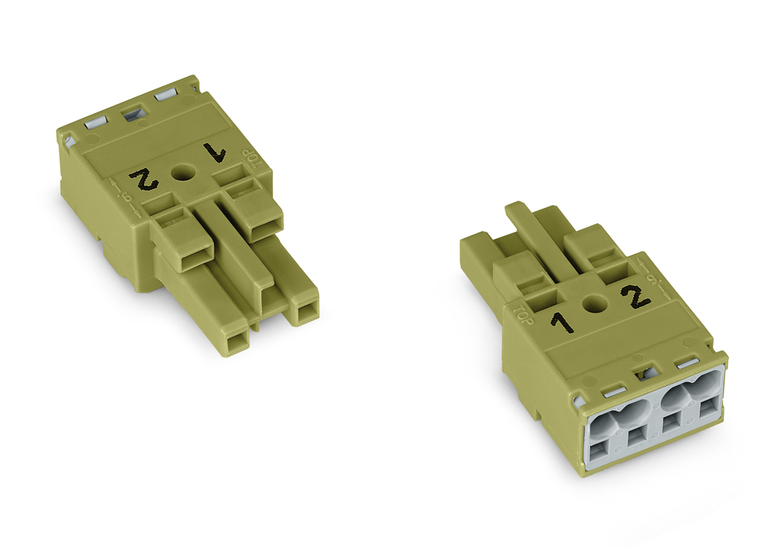

Wago 770-262 Socket 2-pole, light green

(No reviews yet) Write a Review
SKU:
770-262
Condition:
New
  • Wago 770-262
  • Wago 770-262
$2.36

Description

Socket2-pole, light green

  • Protected against mismating and maintenance-free
  • Push-in CAGE CLAMP?? spring pressure connection technology allows solid conductors to be simply pushed into a unit
  • Two-wire connection per pole for loops or bridges
  • Components can be clearly printed on and color-coded to meet custom requirements
View AllClose

Additional Information

actuation type:
Operating tool || Push-in
application:
Measurement and regulation technology
clamping spring material:
Chrome nickel spring steel (CrNi)
coding:
B
color:
Light green
conductor entry direction to mating direction:
0
connection technology:
Push-in CAGE CLAMP???
connector connection type:
For conductor
contact material:
Copper or copper alloy (surface-treated)
contact type pluggable connector:
Female connector/socket
continuous operating temperature:
-35 ?? +85 C
country of origin sales organisation germany:
DE
depth:
37.5 mm / 1.476 inch
fine stranded conductor:
0.5 ????? 4 mm?? / 20 ????? 12 AWG
fine stranded conductor with ferrule push in termination:
1.5 mm?? / 16 AWG
fine stranded conductor with insulated ferrule:
0.25 ????? 1.5 mm?? / 20 ????? 16 AWG
fine stranded conductor with uninsulated ferrule:
0.25 ????? 2.5 mm?? / 20 ????? 14 AWG
fire load:
0.113 MJ
height:
12.9 mm / 0.508 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) ????? Overvoltage category III / Pollution degree 3
locking lever:
Can be retrofitted
locking of plug in connection:
Locking lever
marking:
1 2
mating force of a plug in connection:
Approx. 20 ????? 70 N (depending on pole number)
mismating protection:
Yes
nominal cross section:
4 mm??
nominal voltage iii 3:
250 V
note on continuous operating temperature:
Insulating parts for temperatures ????¤ 105 ??C
note on mismating protection:
All WINSTA??? components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 ????c.) plugging while laterally staggeredd.) plugging one pole
number of mating cycles:
200, without resistive load
packaging type:
Box
pin spacing:
10 mm / 0.394 inch
pole no:
2
processing temperature:
-5 ????? +40 ??C
protection class:
IP20: When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
rated current:
25 A
rated current ul 1977:
23 A
rated surge voltage iii 3:
4 kV
rated voltage ul 1977:
600 V
ratings per:
IEC/EN 60664-1
retention force of a plug in connection:
Locked: > 80 N
solid conductor:
0.5 ????? 4 mm?? / 20 ????? 12 AWG
solid conductor push in termination:
1.5 ????? 4 mm?? / 16 ????? 12 AWG
stranded conductor:
0.5 ????? 2.5 mm?? / 20 ????? 14 AWG
strip length:
9 mm / 0.35 inch
unmating force of a plug in connection:
Unlocked: approx. 20 ????? 70 N (depending on pole number)
weight:
6.590 g
width:
20 mm / 0.787 inch
