Wago

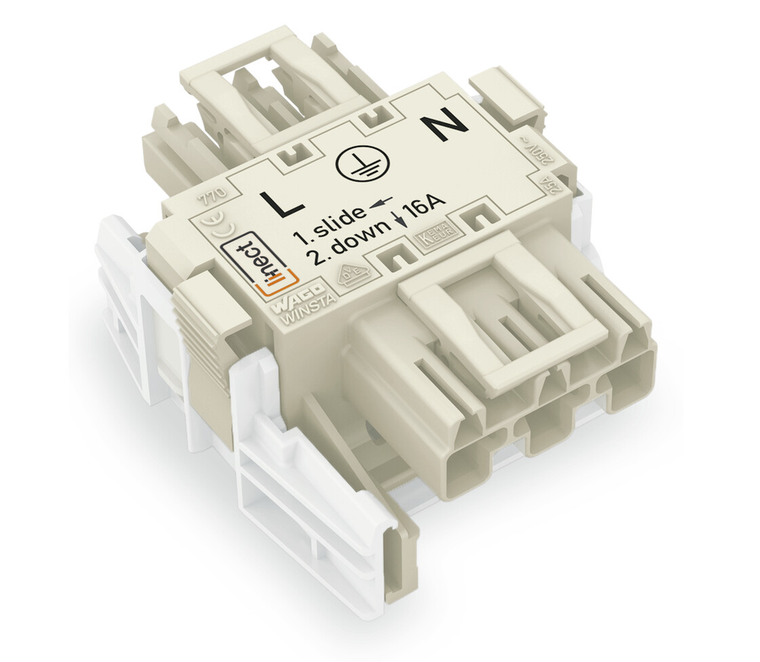

WAGO 770-6223

SKU:

770-6223

UPC:

MPN:

770-6223

Condition:

New

application:

General mains applications

coding:

A

color:

White

contact material:

Copper or copper alloy (surface-treated)

continuous operating temperature:

-35 +85 C

country of origin sales organisation germany:

DE

depth:

56.6 mm / 2.228 inch

distributor type:

Linect T-connector

fire load:

0.599 MJ

height:

39.4 mm / 1.551 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

locking lever:

Yes

locking of plug in connection:

Locking lever

marking:

L N

mating force of a plug in connection:

Approx. 20 70 N (depending on pole number)

mismating protection:

Yes

nominal voltage iii 3:

250 V

note on continuous operating temperature:

Insulating parts for temperatures ¤ 105 C

note on mismating protection:

All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole

number of mating cycles:

200, without resistive load

packaging type:

Box

pin spacing:

10 mm / 0.394 inch

pole no:

3

processing temperature:

-5 +40 C

protection class:

IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

rated current:

25 A

rated current 2:

16 A

rated current ul 1977:

23 A

rated surge voltage iii 3:

4 kV

rated voltage ul 1977:

600 V

ratings per:

IEC/EN 60664-1

retention force of a plug in connection:

When locked: > 80 N

technology:

Linect

unmating force of a plug in connection:

Unlocked: approx. 20 70 N (depending on pole number)

weight:

25.340 g

width:

50.5 mm / 1.988 inch
