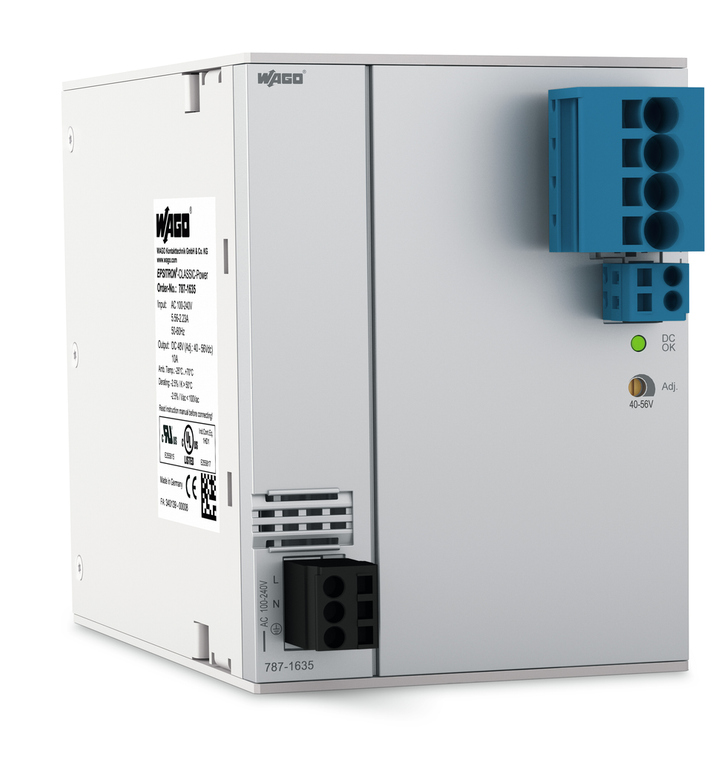

WAGO 787-1635/000-070

(No reviews yet) Write a Review

Write a Review

×

WAGO 787-1635/000-070

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

787-1635/000-070

Condition:

New

conformity marking:

CE

connection technology:

CAGE CLAMP

connection technology 2:

Push-in CAGE CLAMP

connection type 1:

Input/signaling

connection type 2:

Output

control deviation:

¤ 1 %

country of origin sales organisation germany:

DE

current limitation:

1.1 x Io nom (typ.)

default setting:

DC 48 V

depth from upper edge of din rail:

170 mm / 6.693 inch

derating:

-5 %/K (> 60 C, 196 264 VAC): -2.5 %/K (> 50 C, 85 195 VAC)

discharge current:

¤ 1 mA

efficiency typ:

0.93

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fine stranded conductor 2:

0.5 10 mm / 20 8 AWG

fire load:

0.721 MJ

height:

127 mm / 5 inch

input current ii:

¤ 2.23 A (230 VAC): ¤ 5.56 A (100 VAC)

input voltage derating:

-2.5 %/V (< 100 VAC)

input voltage range:

AC 85 264 V: DC 120 372 V

inrush current:

¤ 30 A

internal fuse:

T 10 A / 250 VAC

isolation voltage pri gnd:

DC 2.2 kV

isolation voltage pri sec:

DC 4.242 kV

isolation voltage sec gnd:

DC 0.7 kV

mains failure hold up time:

20 ms (230 VAC): 20 ms (100 VAC)

mounting type:

DIN-35 rail

mtbf:

> 500,000 h (per IEC 61709)

nominal input voltage ui nom:

1 x AC 100 240 V

nominal mains frequency range:

44 66 Hz: 0 Hz

nominal output current io nom:

10 A (48 VDC)

nominal output power:

480 W

nominal output voltage uo nom:

DC 48 V (SELV)

open circuit proof:

Yes

operation status indicator:

Green LED (Uo)

output voltage range:

DC 40 56 V (adjustable)

overload behavior:

Constant current

overvoltage category:

II

overvoltage protection secondary:

Internal protective circuit || ¤ 60 VDC (in the event of a fault)

packaging type:

Box

parallel operation:

Yes

phases:

1

pollution degree:

2

power factor correction pfc:

Active

power loss max pl max:

64.9 W (100 VAC / 48 VDC: 10 A)

power loss pl:

¤ 11.7 W (230 VAC: No load): ¤ 36.3 W (230 VAC: Nominal load)

protection class:

I

protection type:

IP20 (per EN 60529)

recommended backup fusing:

Circuit breaker: 10 A, 16 A: Tripping characteristic: B or C

relative humidity:

5 96 % (no condensation permissible)

required backup fusing:

An external DC fuse is required for the DC input voltage.

residual ripple:

¤ 80 mV (Peak-to-peak)

resistance to reverse feed:

¤ DC 63 V

series operation:

Yes

short circuit protected:

Yes

signaling:

1 x LED DC OK (green) || 1 x DC OK contact (make contact: max. 30 VAC/DC: 1 A)

solid conductor:

0.08 2.5 mm / 28 12 AWG

solid conductor 2:

0.5 10 mm / 20 8 AWG

standards specifications:

EN 61010-1 || EN 61010-2-201 || EN 61204-3 || UL 60950-1 || UL 508

strip length:

8 9 mm / 0.31 0.35 inch

strip length 2:

13 15 mm / 0.51 0.59 inch

surrounding air temperature operation:

-25 70 C (Device starts at 40 C (type-tested))

surrounding air temperature storage:

-25 85 C

transient suppression primary:

Varistor

wago connector:

WAGO 721 Series

wago connector 2:

WAGO 831 Series

weight:

1600.000 g

width:

95 mm / 3.74 inch
