Description

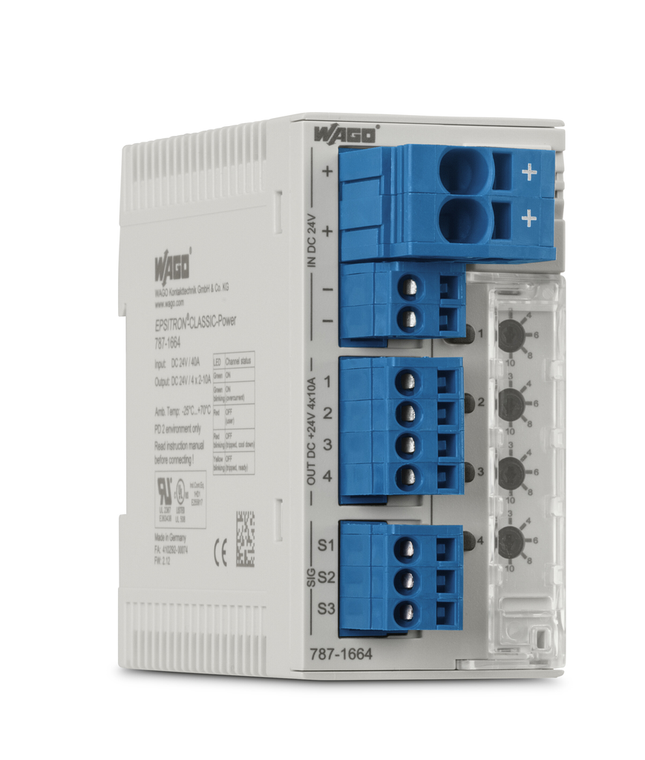

Description | Electronic circuit breaker EPSITRON ; 24 VDC; 4 X 12 A; active current limitation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remarks | Item description:
Nominal current: 4 x 12 ADC (max.) (2, 4, 6, 8, 10, 12 A adjustable for each channel via selector switch) Switch-on behavior: Time-delayed channel switching (load-dependent, min. 50 ms / max. 5 s) Remote input: Reactivation of all tripped channels via 15 30 VDC pulse for min. 500 ms Switching on/off any number of channels via pulse sequence. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Item properties | Miscellaneous
|
