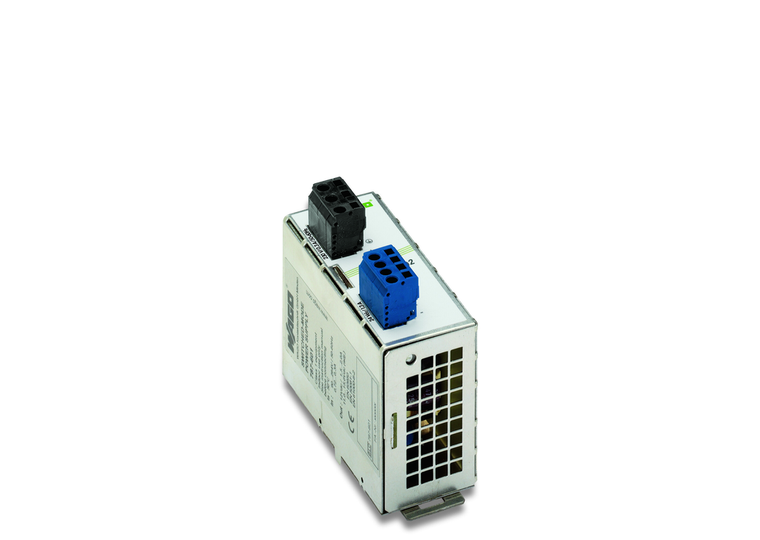

Wago 787-602 Switched-mode power supply; Classic; 1-phase; 24 VDC output voltage; 1.3 A output current

(No reviews yet) Write a Review

Write a Review

Wago 787-602 Switched-mode power supply; Classic; 1-phase; 24 VDC output voltage; 1.3 A output current

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

787-602

UPC:

MPN:

787-602

Condition:

New

conformity marking:

CE

connection technology:

CAGE CLAMP

connection type 1:

Input/output

control deviation:

¤ 3 %

country of origin sales organisation germany:

DE

current limitation:

1.5 x Io nom (typ.)

default setting:

DC 24 V

depth from upper edge of din rail:

90 mm / 3.543 inch

derating:

-3 %/K (> 50 C)

discharge current:

¤ 0.9 mA

efficiency typ:

0.83

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.000 MJ

height from upper edge of din rail:

95 mm / 3.74 inch

input current ii:

¤ 0.3 A (230 VAC)

input voltage range:

AC 90 264 V: DC 130 300 V

inrush current:

¤ 25 A

internal fuse:

T 2 A / 250 VAC

isolation voltage pri gnd:

DC 2.2 kV

isolation voltage pri sec:

DC 4.242 kV

isolation voltage sec gnd:

DC 0.7 kV

mains failure hold up time:

20 ms (230 VAC)

mounting type:

DIN-35 rail

nominal input voltage ui nom:

1 x AC 100 240 V: DC 140 300 V

nominal mains frequency range:

50 60 Hz: 0 Hz

nominal output current io nom:

1.3 A (24 VDC)

nominal output voltage uo nom:

DC 24 V (SELV)

note conductor cross section:

12 AWG: THHN, THWN

open circuit proof:

Yes

operation status indicator:

Green LED (24 V OK)

output voltage range:

DC 22 28.8 V (adjustable)

overload behavior:

Hiccup

overvoltage protection secondary:

Internal protective circuit || ¤ 40 VDC (in the event of a fault)

packaging type:

Box

parallel operation:

No

phases:

1

pollution degree:

2

power factor correction pfc:

Passive

power loss max pl max:

7 W (90 VAC / 24 VDC: 1.3 A)

power loss pl:

¤ 4.9 W (230 VAC: No load)

protection class:

I

protection type:

IP20 (per EN 60529)

recommended backup fusing:

Circuit breaker: C10 or B10

relative humidity:

30 85 % (no condensation permissible)

required backup fusing:

An external DC fuse is required for the DC input voltage.

residual ripple:

¤ 100 mV (Peak-to-peak)

resistance to reverse feed:

¤ DC 30 V

series operation:

Yes

short circuit protected:

Yes ("hiccup")

solid conductor:

0.08 2.5 mm / 28 12 AWG

standards specifications:

EN 60950-1 || EN 61204-3 || UL 60950 || UL 508 || GL

strip length:

8 9 mm / 0.31 0.35 inch

surrounding air temperature operation:

-10 70 C

surrounding air temperature storage:

-25 85 C

transient suppression primary:

Varistor

wago connector:

WAGO 231 Series

weight:

300.000 g

width:

40 mm / 1.575 inch
