Name: WAGO 787-785
SKU: 787-785
Price: 162.1 USD
Availability: InStock

WAGO 787-785

(No reviews yet) Write a Review

SKU:

787-785

MPN:

787-785

Condition:

New

conformity marking:

connection technology:

Push-in CAGE CLAMP

connection type 1:

Input/output

country of origin sales organisation germany:

depth from upper edge of din rail:

153 mm / 6.024 inch

derating:

-2.66 %/K (55 C < Tu ¤ 70 C)

efficiency typ:

0.97

fine stranded conductor:

1.5 16 mm / 16 6 AWG

fire load:

0.000 MJ

height:

130 mm / 5.118 inch

input current ii:

¤ 40 A (Per path): ¤ 76 A (in total)

input voltage range:

2 x DC 9 54 V

isolation voltage connectors housing:

DC 0.5 kV

mounting type:

DIN-35 rail

mtbf:

> 10 million h (per IEC 61709)

nominal input voltage ui nom:

2 x DC 24 V

nominal mains frequency range:

0 Hz

nominal output current io nom:

76 A (UL: 65 A (max.))

nominal output power:

1824 W

nominal output voltage uo nom:

DC 24 V

open circuit proof:

Yes

operation status indicator:

2 x Green LED (Ui > 7.5 VDC) || 1 x Green LED (Uo > 7.5 VDC)

output power max:

¤ 4104 W

output voltage range:

DC 9 54 V (Ue voltage drop)

overvoltage protection secondary:

packaging type:

Box

parallel operation:

Yes

pollution degree:

power loss pl:

¤ 38 W (Nominal load)

protection class:

III

protection type:

IP20 (per EN 60529)

relative humidity:

¤ 95% (no condensation permissible)

resistance to reverse feed:

¤ DC 60 V

resistance to shock and vibration:

Shock: 15g (per EN 60068-2-27)

series operation:

short circuit protected:

signaling:

1 x IN1 LED (green) || 1 x IN2 LED (green) || 1 x OUT LED (green)

solid conductor:

1.5 16 mm / 16 6 AWG

standards specifications:

UL 508

strip length:

12 13 mm / 0.47 0.51 inch

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-40 85 C

voltage drop:

¤ 500 mV (Input/output)

wago connector:

WAGO 2716 Series

weight:

960.000 g

width:

83 mm / 3.268 inch

Description

Description

Description

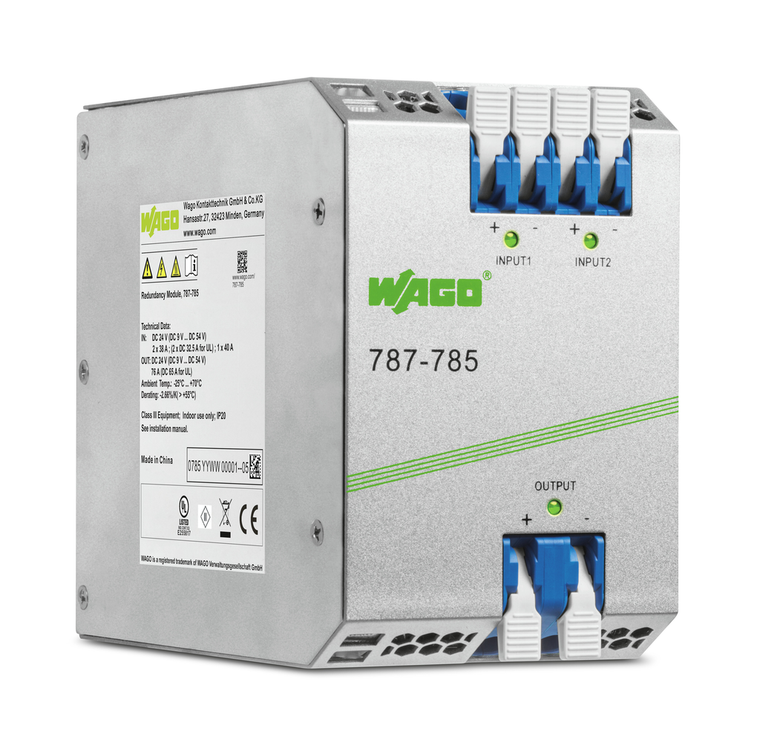

EPSITRON Diode Redundancy Module; Output voltage DC 24 V; 40 A

Remarks

Item description:

Diode redundancy module with 2 inputs for decoupling 2 power supplies
For redundant and fail-safe power supply
Same profile as EPSITRON ECO Power Supplies
Connects to power supplies with electrically isolated output voltage (SELV) acc. to EN 60950-1/UL 60950-1

Operational indication: 2 x LED green (V_i> 7.5 VDC), 1 x LED green (V_o> 7.5 VDC)

Item properties

Miscellaneous

Name	Value	Unit
Overvoltage protection	No
Temperature coefficient	0.03 %/K (0 < T_amb < 50 )
Power loss P_V	29.7 W (nominal load)
Protection class	III
Degree of pollution (5)	2 (acc. to EN 50178)
MTBF	> 10 million h (per IEC 61709)
Input voltage range	2 x 9 54 VDC
Output voltage range	9 ... 54 VDC
Voltage drop	0.6 V (input/output)
Nominal input voltage V_{i nom}	2 x 24 VDC
Input current I_i	Max. 40 A DC per path (in total, max. 76 A DC)
Nominal output voltage V_{o nom}	24 VDC
Output current I_o	76 ADC (max.)
Derating	-2.66 %/K (55 < T_amb 70 )
Parallel operation	yes
Feedback voltage	60 V
Efficiency	97 %
Degree of protection	IP20 per EN 60529
Short circuit protection	No
Test voltage	0.5 kV (input housing); 0.5 kV (output housing)
No-load proof	yes
Connection technology	CAGE CLAMP
Solid conductor	1.5 16 mm / 16 6 AWG
Fine-stranded conductor	1.5 16 mm / 16 6 AWG
Strip length	12 13 mm / 0.47 0.51 Inch
Connection technology 2	CAGE CLAMP
Solid conductor 2	1.5 16 mm / 16 6 AWG
Strip length 2	12 13 mm / 0.47 0.51 Inch
Weight [g]	960	g
Width	83 mm / 3.268 Inch
Height	130 mm / 5.118 Inch
Depth	153 mm / 6.024 Inch
Storage temperature	-40 +85
Type of mounting	DIN-35 x 15 carrier rail
Ambient operating temperature	-25 +70
Mounting type	Tragschienenmontage (EN 60715)
Climatic category	3K3 (acc. to EN 60721, except for low air pressure)
Shock resistance	acc. to IEC15 g (acc. to EN 60068-2-27)
Vibration resistance	acc. to IEC0.7 g (acc. to EN 60068-2-6)
Relative humidity	95 % (no condensation)
