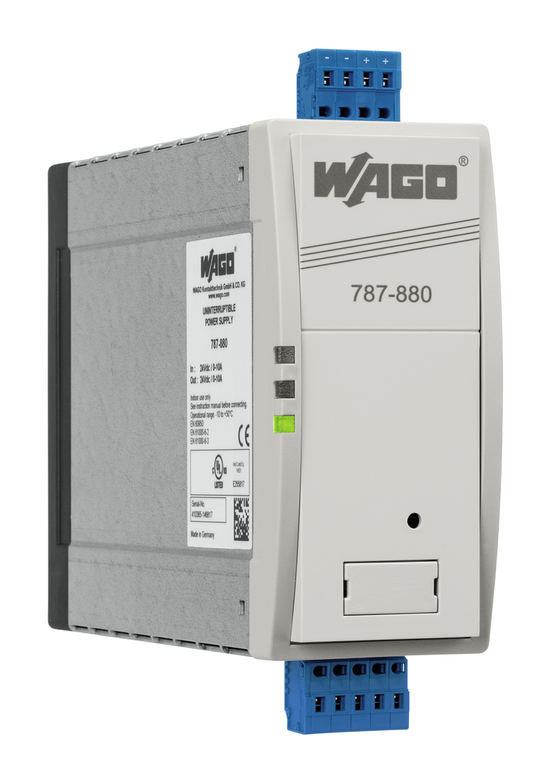

WAGO 787-880

(No reviews yet) Write a Review

Write a Review

WAGO 787-880

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

787-880

UPC:

MPN:

787-880

Condition:

New

buffer time:

0.06 7.2 s depends on load current and switch-on threshold

charging time typ:

5 min

conformity marking:

CE

connection technology:

CAGE CLAMP

connection type 1:

Input/output/relay

country of origin sales organisation germany:

DE

current limitation:

1.1 x Io nom (typ.)

depth from upper edge of din rail:

179 mm / 7.047 inch

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.000 MJ

height:

163 mm / 6.417 inch

input current ii:

¤ 0.06 A (No load): ¤ 1 A (Charging): ¤ 11 A

input voltage range:

DC 20 30 V

isolation voltage connectors housing:

DC 0.5 kV

mounting type:

DIN-35 rail

mtbf:

Typ. 87,600 h (at 25 C): typ. 30,500 h (at 40 C)

nominal input voltage ui nom:

DC 24 V

nominal mains frequency range:

0 Hz

nominal output current io nom:

0.416666666666667

nominal output voltage uo nom:

DC 24 V

note dimensions:

Height with connector

operation status indicator:

Green LED (Uo > 20 V) || Yellow LED (charging) || Red LED (Uo < 20 V)

output voltage range:

Ui 0.5 VDC (rated operation): 20.4 24 VDC (buffer mode)

packaging type:

Box

parallel operation:

Yes

pollution degree:

2

power loss pl:

¤ 1.5 W (No load): ¤ 6.5 W (Nominal load)

protection class:

III

protection type:

IP20 (per EN 60529)

relative humidity:

5 96 % (no condensation permissible)

resistance to reverse feed:

¤ DC 35 V

reverse voltage protection:

Yes

series operation:

No

signaling:

1 x LED DC OK (green) || 1 x Charge LED (yellow) || 1 x DC not OK LED (red) || 1 x Isolated relay contact (max. 30 VDC: 1 A)

solid conductor:

0.08 2.5 mm / 28 12 AWG

standards specifications:

EN 60950 || UL 508 || EN 61000-6-2 || EN 61000-6-3

strip length:

8 9 mm / 0.31 0.35 inch

surrounding air temperature operation:

-10 50 C

surrounding air temperature storage:

-10 60 C

switch on threshold adjustable:

DC 20 24 V

wago connector:

WAGO 231 Series

weight:

1000.000 g

width:

57 mm / 2.244 inch
