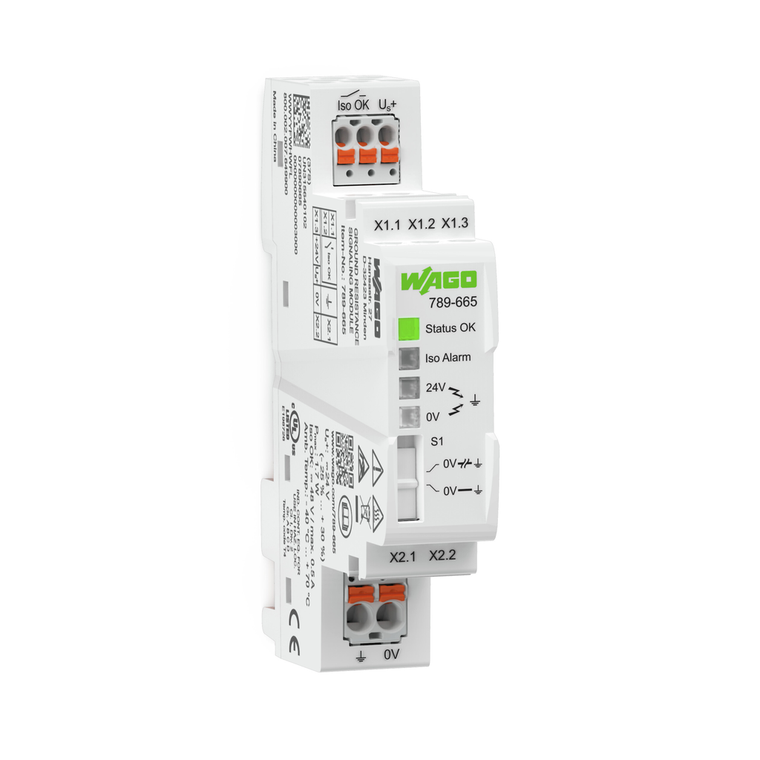

WAGO 789-665

(No reviews yet) Write a Review

Write a Review

×

WAGO 789-665

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

789-665

Condition:

New

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

connection technology 2:

Push-in CAGE CLAMP

connection type 1:

X1.x

connection type 2:

X2.x

continuous current max:

500 mA (for general use)

country of origin sales organisation germany:

CN

current at ground fault 24 vdc max:

56 mA

depth from upper edge of din rail:

51 mm / 2.01 inch

emc emission of interference:

EN 61000-6-3: EN 61000-6-4

emc immunity to interference:

EN 61000-6-2

fine stranded conductor:

0.25 1.5 mm / 24 14 AWG

fine stranded conductor 2:

0.2 2.5 mm / 24 14 AWG

fine stranded conductor with insulated ferrule:

0.25 0.75 mm

fine stranded conductor with insulated ferrule 2:

0.25 1.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 1.5 mm

fine stranded conductor with uninsulated ferrule 2:

0.25 2.5 mm

fire load:

0.000 MJ

function:

1 make contact (NO): closed with applied power supply and insulation resistance > limit value

height:

90 mm / 3.54 inch

hysteresis typ:

1 k

mounting type:

DIN-35 rail

mtbf:

> 600,000 h (per MIL-HDBK-217F2)

nominal supply voltage us:

DC 24 V (SELV)

number of iso ok contacts connected in series max:

25 (Limit value type: 1): 32 (Limit value type: 2 and 3) (per IEC 61131)

operating altitude max:

3000 m

operation status indicator:

1 x LED Status OK (green)

overvoltage category:

II

pollution degree:

2

power consumption at nominal supply voltage:

¤ 40 mA

power loss pl:

¤ 1.7 W

protection type:

IP20

relative humidity:

5 95 % (non-condensing)

required backup fusing:

The fuse must be placed in the output circuit of the power supply. The fuse must be adapted to the power supply used and must trip safely in case of a short circuit. The module is designed for use with a 10 A (max. ) fuse or with a 10 ADC (max.) circ

response time:

1 s

response value for alarm at nominal supply voltage:

4 k (at US = 24 V, for other values of US see signaling threshold characteristic)

signaling:

1 x LED Iso Alarm (red) || 1 x LED Iso Alarm 24 V Ground (yellow) || 1 x LED Iso Alarm 0 V Ground (yellow) || 1 x Signal output Iso OK

solid conductor:

0.25 1.5 mm / 24 14 AWG

solid conductor 2:

0.2 2.5 mm / 24 12 AWG

standards specifications:

UL 61010-2-201

strip length:

8 9 mm / 0.31 0.35 inch

strip length 2:

9 10 mm / 0.35 0.39 inch

supply voltage range dc:

DC 18 31.2 V

surrounding air temperature operation:

-40 +70 C

surrounding air temperature storage:

-40 +85 C

temperature range of the connecting cable according to en 61010 2 201:

(Tsurrounding air + 10 K)

test voltage supply iso ok contact:

1.5 kVAC: 50 60 Hz: 1 min

wago connector:

picoMAX eCOM

wago connector 2:

picoMAX eCOM

weight:

47.000 g

width:

18 mm / 0.71 inch
