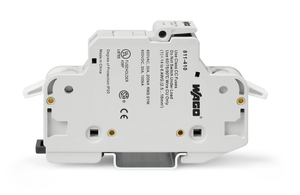

WAGO 811-420

(No reviews yet) Write a Review

Write a Review

WAGO 811-420

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

811-420

UPC:

MPN:

811-420

Condition:

New

actuation type:

Operating tool

type of fuse:

Cylindrical fuse 10 x 38 mm Class CC

color:

Light gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

continuous operating temperature:

-35 +85 C

depth from upper edge of din rail:

55 mm / 2.165 inch

design:

Horizontal type

fine stranded conductor:

2.5 16 mm / 16 6 AWG

fire load:

0.000 MJ

height:

105 mm / 4.134 inch

insulation material:

Polyamide (PA66)

mounting type:

DIN-35 rail

nominal voltage iii 3:

600 V

packaging type:

Box

pole no:

2

rated current:

32 A

rated voltage iii 3 2:

600 V

ratings note:

Electrical ratings are given by the fuse.

ratings per:

IEC/EN 60947-7-3

solid conductor:

2.5 16 mm / 14 6 AWG

strip length:

12 13 mm / 0.47 0.51 inch

weight:

1.111 g

width:

35 mm / 1.378 inch

wiring direction:

Side-entry wiring
