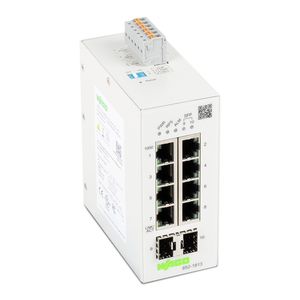

WAGO 852-1813/010-001
- SKU:
- 852-1813/010-001
- Condition:
- New
- baud rate:
- Copper cable: 10/1000 Mbit/s: Fiber optic:1000 Mbit/s
- color:
- Light gray
- communication standards:
- IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX/FX || IEEE 802.3ab 1000BASE-T || IEEE 802.3x Flow Control || IEEE 802.1d Spanning Tree Protocol (STP) || IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) || IEEE 802.1Q VLAN Tagging || IEEE 802.1p Prioriti
- configuration options:
- DIP switch for signal contact || Web-Based Management || Command Line Interface || SNMPv1/v2c/v3
- conformity marking:
- CE
- connection technology communication fieldbus:
- Copper cable: 8 x RJ-45: Fiber optic: 2 x SFP: LC fiber-optic connector
- country of origin sales organisation germany:
- TW
- depth:
- 120 mm / 4.724 inch
- diagnostics:
- Signal contact: Modbus TCP: port status: port statistics: port load: traffic monitor: syslog: SNMP traps: loop detection: diagnostics dashboard: topology map
- emc emission of interference:
- Per EN 61000-6-4
- emc immunity to interference:
- Per EN 61000-6-2
- esd contact air discharge:
- 8 KV / 15 KV
- fire load:
- 0.000 MJ
- height:
- 160 mm / 6.299 inch
- jumbo frame size:
- 10000 Byte
- mac table size:
- 8000 addresses
- mounting type:
- DIN-35 rail
- number of 1000base sx lx ports:
- 2
- number of 1000base t ports:
- 8
- optical fiber type:
- Single-mode and multi-mode
- power consumption max:
- 13 W
- power consumption note:
- 253 W with 8 PoE+: 30 W per port
- protection type:
- IP30
- redundancy function:
- Redundant DC power supply: STP: RSTP: ERPSv1/v2 (max. 2 rings per switch, max. 16 switches per ring, switching time < 800 ms)
- relative humidity without condensation:
- 0.95
- security:
- Access Control List mit max. 32 Eintr±gen: Port Security: Authentication IEEE 802.1X
- shock resistance:
- Per IEC 60068-2-27
- supply voltage:
- 24 ª 57 VDC
- surrounding air temperature operation:
- -10 ª 60 C
- surrounding air temperature storage:
- -40 ª 85 C
- switching mode:
- Storeandforward: non-blocking
- transmission medium communication fieldbus:
- Fiber optic: SX Multi-Mode, LX Single-Mode
- vibration resistance:
- Per IEC 60068-2-6
- vlan:
- Port-based and tag-based (max. 5 VLANs)
- weight:
- 560.000 g
- width:
- 50 mm / 1.969 inch
Description

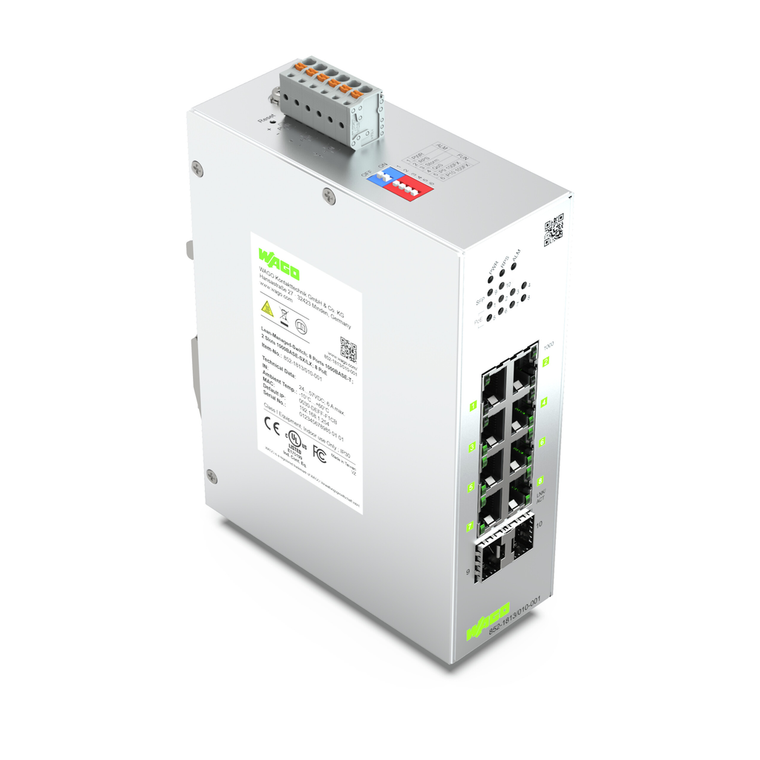

Lean Managed Switch; 8 Ports 1000Base-T; 2-Slot 1000BASE-SX/LX; 8 * Power over Ethernet
