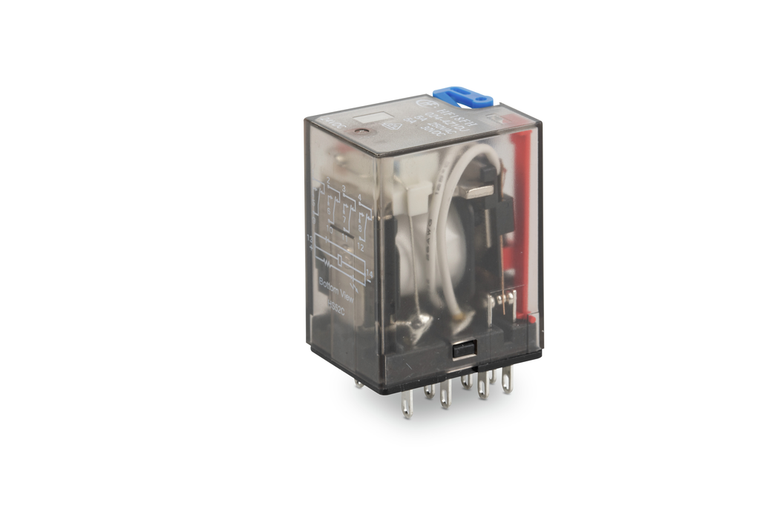

WAGO 858-189 Pack of 3
- SKU:
- 858-189
- Condition:
- New
- contact material relay:
- AgNi
- country of origin sales organisation germany:
- DE
- depth:
- 27.5 mm / 1.083 inch
- dielectric strength control load circuit ac 1 min:
- 2.5 kVrms
- dielectric strength load load circuit ac 1 min:
- 2.5 kVrms
- dielectric strength open contact ac 1 min:
- 1.5 kVrms
- drop out time typ:
- 8 ms
- electrical life no resistive load 23 c:
- 100 x 103 switching operations
- fire load:
- 0.000 MJ
- height from the surface:
- 35.6 mm / 1.402 inch
- inrush current resistive max:
- (AC) 24 A / 4 s
- limiting continuous current:
- 0
- mechanical life:
- 20 x 106 switching operations
- mounting type:
- Pluggable module
- nominal input current at un:
- 11 mA
- nominal input voltage un:
- AC 230 V
- number of changeover switchover contacts:
- 2
- packaging type:
- BOX
- protection type:
- IP20
- pull in time typ:
- 10 ms
- recommended minimum load:
- 10 V / 5 mA / 300 mW
- standards specifications:
- EN 61810-1
- status indicator:
- Red LED || Mechanical
- surrounding air temperature operation at un:
- -40 55 C
- surrounding air temperature storage:
- -40 85 C
- switching capacity:
- AC-15: 1.5 A / AC 240 V: DC-13: 0.1 A / DC 250 V
- switching frequency with without load max:
- 20 min-1 / 200 min-1
- switching power resistive max:
- AC 3000 VA: DC (see load limit curve)
- switching voltage max:
- AC 250 V
- weight:
- 31.500 g
- width:
- 21.2 mm / 0.835 inch
Description
Basic relay; Nominal input voltage: 230 VAC; 2 changeover contacts; Limiting continuous current: 12 A; with manual operation; Module width: 22 mm
