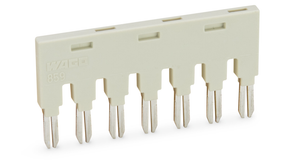

WAGO 859-407/000-005 Pack of 25

(No reviews yet) Write a Review

Write a Review

×

WAGO 859-407/000-005 Pack of 25

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

859-407/000-005

Condition:

New

Availability:

In our warehouse: 25

actuation type:

Lever

approvals per:

UL 60079

color:

Transparent

color of actuator:

Light gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

continuous operating temperature:

-55 +105 C

country of origin sales organisation germany:

CH

depth:

21.1 mm / 0.831 inch

fine stranded conductor:

0.5 6 mm / 20 10 AWG

fire load:

0.097 MJ

flammability class per ul94:

V2

height:

10.1 mm / 0.398 inch

nominal cross section:

6 mm

packaging type:

Box

rated current ex e ii:

37 A

rated current ul use group c:

30 A

rated voltage en ex e ii:

440 V

rated voltage ul use group c:

440 V

ratings per:

ATEX: PTB 19 ATEX 1001 U / IECEx: PTB 19.001 1U (Ex eb IIC Gb)

safety information 1:

The permissible operating voltage of the connector with carrier (440 V or 275 V) depends on the mounting type.

safety information 2:

Only approved in conjunction with a mounting carrier (221-511). Other carriers are possible, see certificate/file.The connectors must be installed in an enclosure meeting the requirements of a recognized protection type per EN 60079-0, Section 1 or E

solid conductor:

0.5 6 mm / 20 10 AWG

stranded conductor:

0.5 6 mm / 20 10 AWG

strip length:

12 14 mm / 0.47 0.55 inch

weight:

4.348 g

width:

22.9 mm / 0.902 inch

wiring direction:

Side-entry wiring
