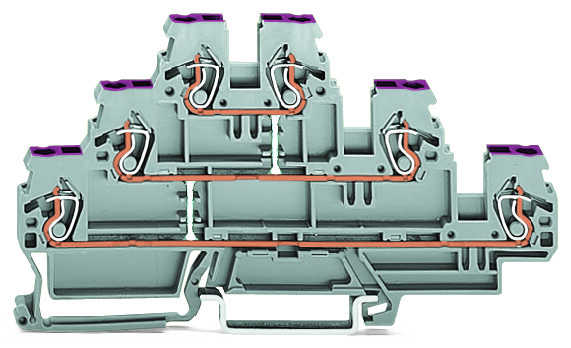

WAGO 870-556
- SKU:
- 870-556
- Condition:
- New
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 52.5 mm / 2.067 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.280 MJ
- flammability class per ul94:
- V0
- height:
- 106 mm / 4.173 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 24 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- safety information 1:
- Max. insulation diameter: 4.4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 17.837 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
Description
Triple-deck terminal block; 6-conductor through terminal block; L; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray
