Description

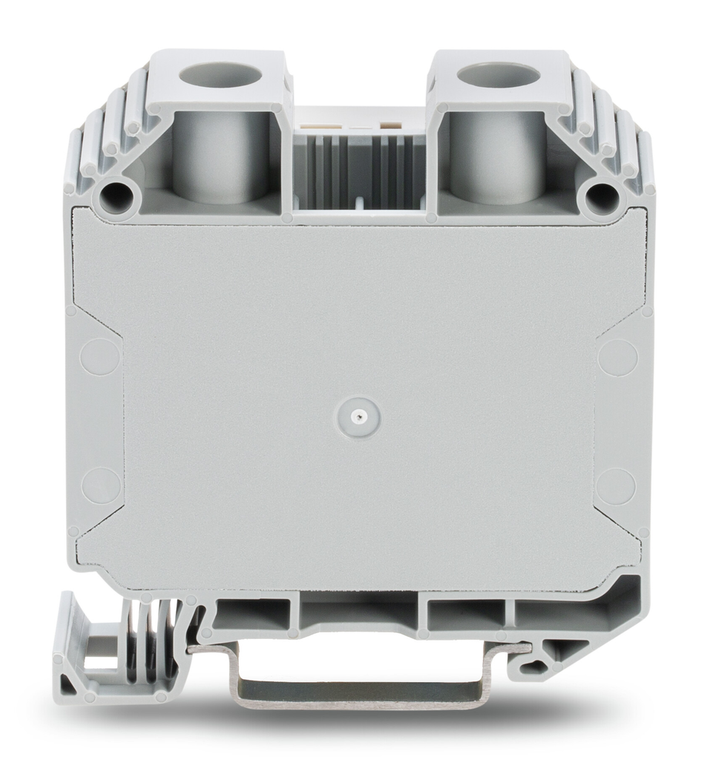

2-conductor through terminal block; 35 mm²; with screw-type connection; 35,00 mm²; gray
View AllClose
Additional Information
actuation type: |
Slot screwdriver: (6.5 x 1.2) mm blade |
approvals per: |
UL 1059 |
color: |
Gray |
connectable conductor materials: |
Copper |
connection technology: |
Screw-type connection |
country of origin sales organisation germany: |
DE |
depth from upper edge of din rail: |
65.5 mm / 2.579 inch |
design: |
Horizontal type |
fine stranded conductor: |
1.5 50 mm / 16 1/0 AWG |
fine stranded conductor with insulated ferrule: |
1.5 35 mm / 16 2 AWG |
fire load: |
0.000 MJ |
flammability class per ul94: |
V0 |
height: |
59 mm / 2.323 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 3) Overvoltage category III / Pollution degree 3 |
marking level: |
Side marking |
mounting type: |
DIN-rail 35 x 7.5 |
nominal cross section: |
35 mm |
nominal voltage iii 3: |
1000 V |
note conductor cross section: |
Connecting 50 mm is only possible on a copper DIN 35 x 15 rail (2.3 mm thick). |
packaging type: |
Box |
rated current: |
125 A |
rated current 2: |
150 A |
rated current csa use group c: |
150 A |
rated current ul use group b: |
150 A |
rated current ul use group c: |
150 A |
rated surge voltage iii 3: |
8 kV |
rated voltage csa use group c: |
600 V |
rated voltage ul use group b: |
600 V |
rated voltage ul use group c: |
600 V |
ratings per: |
IEC/EN 60947-7-1 |
screw thread: |
M6 |
solid conductor: |
1.5 50 mm / 16 1/0 AWG |
stranded conductor: |
1.5 50 mm / 16 1/0 AWG |
strip length: |
18 mm / 0.71 inch |
tightening torque: |
3.2 3.7 Nm |
weight: |
58.000 g |
width: |
16.1 mm / 0.634 inch |
wiring direction: |
Side-entry wiring |
