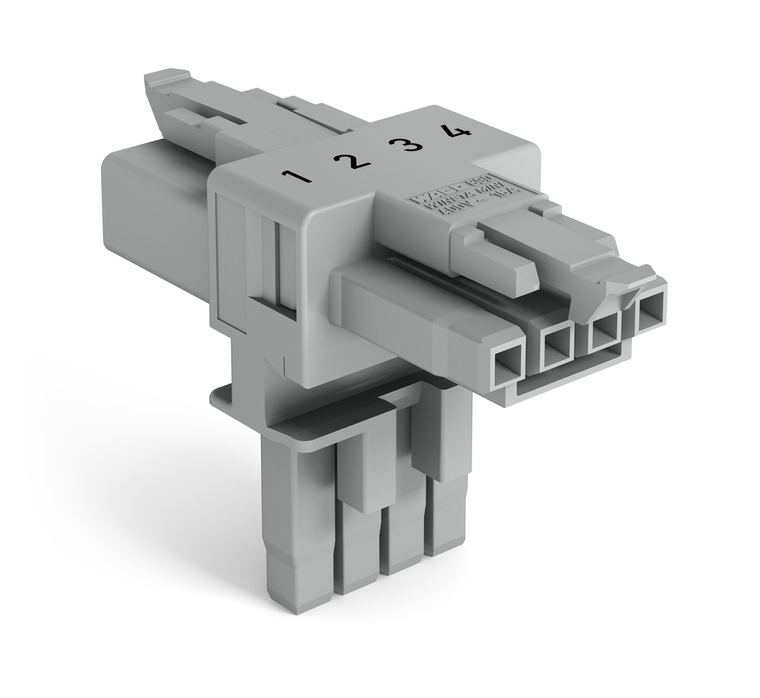

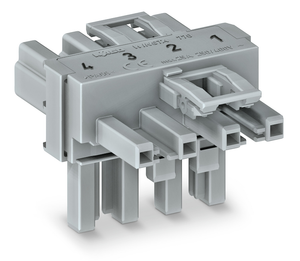

T-distribution connector; 4-pole; Cod. B; 1 input; 2 outputs; 2 locking levers; gray
View AllClose
Additional Information
application: |
Measurement and regulation technology |
coding: |
B |
color: |
Gray |
contact material: |
Copper or copper alloy (surface-treated) |
country of origin sales organisation germany: |
DE |
depth: |
53.9 mm / 2.122 inch |
distributor type: |
T-distribution connector |
fire load: |
0.192 MJ |
height: |
39.65 mm / 1.561 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 3) Overvoltage category III / Pollution degree 3 |
locking lever: |
Yes |
locking of plug in connection: |
Locking lever |
marking: |
1 2 3 4 |
mating force of a plug in connection: |
Approx. 20 70 N (depending on pole number) |
mismating protection: |
Yes |
nominal voltage iii 3: |
400 V |
note on mismating protection: |
All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
number of locking levers: |
2 |
number of mating cycles: |
200, without resistive load |
packaging type: |
Box |
pin spacing: |
4.4 mm / 0.173 inch |
pole no: |
4 |
processing temperature: |
-5 +40 C |
protection class: |
IP20: IP40 when mated |
rated current: |
16 A |
rated current ul 1977: |
0 |
rated surge voltage iii 3: |
6 kV |
rated voltage ul 1977: |
600 V |
ratings per: |
IEC/EN 60664-1 |
retention force of a plug in connection: |
When locked: > 80 N |
unmating force of a plug in connection: |
Unlocked: approx. 20 70 N (depending on pole number) |
weight: |
10.102 g |
width: |
22.3 mm / 0.878 inch |
