Description

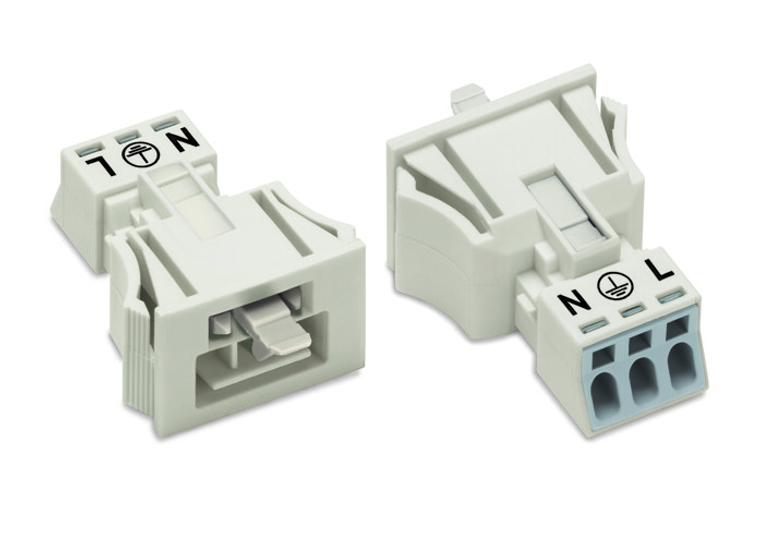

WINSTA through-panel plug (male); MINI; snap-in; 1/2/3 marking; 3-pole; white
View AllClose
Additional Information
actuation type: |
Operating tool || Push-in |
application: |
General mains applications |
clamping spring material: |
Chrome nickel spring steel (CrNi) |
coding: |
A |
color: |
White |
conductor entry direction to mating direction: |
0 |
connection technology: |
Push-in CAGE CLAMP« |
connector connection type: |
For conductor |
contact material: |
Copper or copper alloy (surface-treated) |
contact type pluggable connector: |
Male connector/plug |
country of origin sales organisation germany: |
PL |
depth: |
39.85 mm / 1.569 inch |
fine stranded conductor: |
0.25 ª 1.5 mm / 22 ª 16 AWG |
fine stranded conductor with ferrule push in termination: |
0.75 mm / 20 AWG |
fine stranded conductor with insulated ferrule: |
0.25 ª 0.75 mm / 22 ª 20 AWG |
fine stranded conductor with uninsulated ferrule: |
0.25 ª 0.75 mm / 22 ª 20 AWG |
fire load: |
0.135 MJ |
height: |
16 mm / 0.63 inch |
housing sheet thickness: |
0.5 ª 2 mm / 0.02 ª 0.079 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 3) « Overvoltage category III / Pollution degree 3 |
locking lever: |
Yes |
locking of plug in connection: |
Locking lever |
marking: |
L
N |
mating force of a plug in connection: |
Approx. 20 ª 70 N (depending on pole number) |
mismating protection: |
Yes |
mounting type: |
Snap-in |
nominal cross section: |
1.5 mm |
nominal voltage iii 3: |
250 V |
note on mismating protection: |
All WINSTA« components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
number of mating cycles: |
200, without resistive load |
packaging type: |
Box |
pin spacing: |
4.4 mm / 0.173 inch |
pole no: |
3 |
processing temperature: |
-5 ª +40 C |
protection class: |
IP20: IP40 when mated |
rated current: |
16 A |
rated current ul 1977: |
14 A |
rated surge voltage iii 3: |
4 kV |
rated voltage ul 1977: |
600 V |
ratings per: |
IEC/EN 60664-1 |
retention force of a plug in connection: |
Locked: > 80 N |
solid conductor: |
0.25 ª 1.5 mm / 22 ª 16 AWG |
solid conductor push in termination: |
0.75 ª 1.5 mm / 20 ª 16 AWG |
stranded conductor: |
0.25 ª 1 mm / 22 ª 18 AWG |
strip length: |
9 mm / 0.35 inch |
unmating force of a plug in connection: |
Unlocked: approx. 20 ª 70 N (depending on pole number) |
weight: |
6.947 g |
width: |
24.2 mm / 0.953 inch |
