WAGO 256-516/332-009/999-950 pack of 10
Wago
$184.00

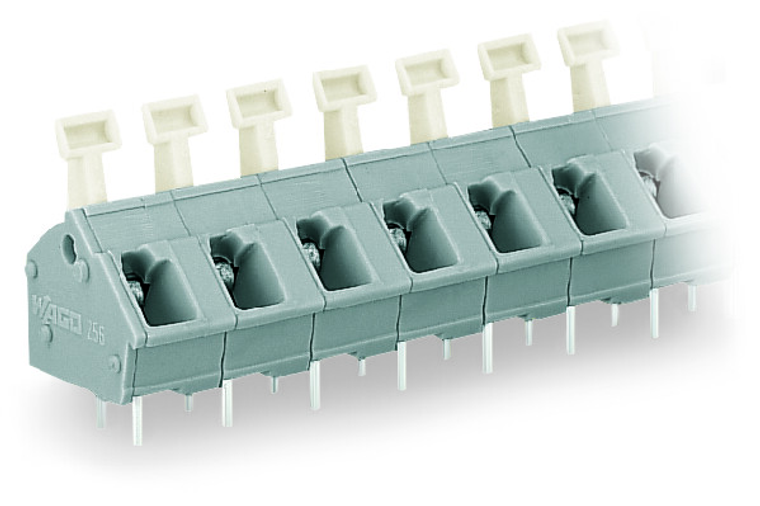

PCB terminal block; push-button; 2.5 mm²; Pin spacing 7.5/7.62 mm; 16-pole; suitable for Ex-e applications; CAGE CLAMP; commoning option; Solder pin length 5.5 mm; 2,50 mm²; light gray.
The WAGO component equivalent to 256516332009999950 is a specific part or product within the WAGO catalog, likely identified by a unique product number or code. This component is used in various electrical and automation applications, known for its reliability and efficiency in connecting, controlling, and automating systems. WAGO components are widely recognized in the industry for their quality and innovation, providing solutions for a range of technical requirements.
- actuation type:
- Push-button
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- depth:
- 17.6 mm / 0.693 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1.5 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 23.7 mm / 0.933 inch
- height from the surface:
- 18.2 mm / 0.717 inch
- insulation material:
- Polyamide (PA66)
- limit temperature range:
- -60 ª +105 C
- material group:
- I
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 7.5/7.62 mm / 0.295/0.3 inch
- pole no:
- 16
- rated current ex e ii:
- 16 A
- rated voltage en ex e ii:
- 275 V
- ratings per:
- ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 5.5 mm
- solid conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- strip length:
- 5 ª 6 mm / 0.2 ª 0.24 inch
- weight:
- 1.111 g
- width:
- 122.9 mm / 4.839 inch
