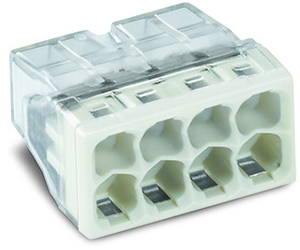

Wago PUSH WIRE® connector, for solid and stranded conductors, multicoloured Pack of 50

(No reviews yet) Write a Review

Write a Review

×

Wago PUSH WIRE® connector, for solid and stranded conductors, multicoloured Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

773-118

Condition:

New

actuation type:

Push-in

connectable conductor materials note:

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO ǣAlu-Plusǥ Contact Paste is used for termination.ǣAlu-Plusǥ Contact Paste Advantages:Automatically destroys the oxide film during clamp

color:

Multicoloured

connectable conductor materials:

Copper || Aluminum

connection technology:

PUSH WIRE«

country of origin sales organisation germany:

CN

cover color:

Green

depth:

19.5 mm / 0.768 inch

fire load:

0.000 MJ

flammability class per ul94:

V2

height:

13.1 mm / 0.516 inch

legend ratings:

(II / 2) ëÖ Overvoltage category II / Pollution degree 2

nominal voltage ii 2:

400 V

packaging type:

Box

rated current:

24 A

rated surge voltage ii 2:

4 kV

ratings per:

IEC/EN 60664-1

safety information 1:

In grounded power lines

solid conductor:

0.75 Ǫ 2.5 mm / 18 Ǫ 12 AWG

stranded conductor:

1.5 Ǫ 2.5 mm / 16 Ǫ 12 AWG

strip length:

12 mm / 0.47 inch

surrounding air temperature operation:

60 C

weight:

4.604 g

width:

24 mm / 0.945 inch

wiring direction:

Side-entry wiring
