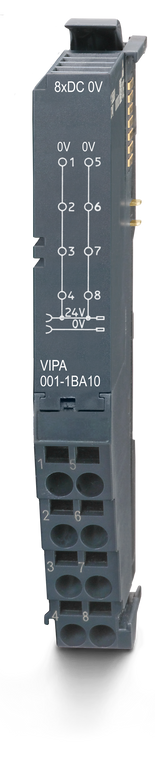

Yaskawa 001-1BA10 Potential Distribution with 8xDC 0V Clamps
Yaskawa
$46.00
The Yaskawa 001-1BA10 Potential Distribution Module is engineered to facilitate efficient distribution of DC 0V potentials within automation systems. This module features eight DC 0V clamps, each capable of handling a maximum terminal current of 10 A, ensuring robust and reliable performance. The total current capacity per module is 10 A, accommodating substantial current requirements. Designed with an isolated group configuration, it effectively manages potential group currents up to 10 A. The clamps are color-coded grey for easy identification. Constructed from durable PPE (Polyphenylene Ether) material, the module measures 12.9 mm in width, 109 mm in height, and 52.5 mm in depth, with a net weight of 46 g. It is mountable on a 35 mm profile rail, facilitating straightforward integration into existing systems. Operating within a temperature range of 0°C to 60°C, the module is UL and UKCA certified, ensuring compliance with international safety standards. Its design and specifications make it an ideal solution for applications requiring precise and reliable DC 0V potential distribution.
