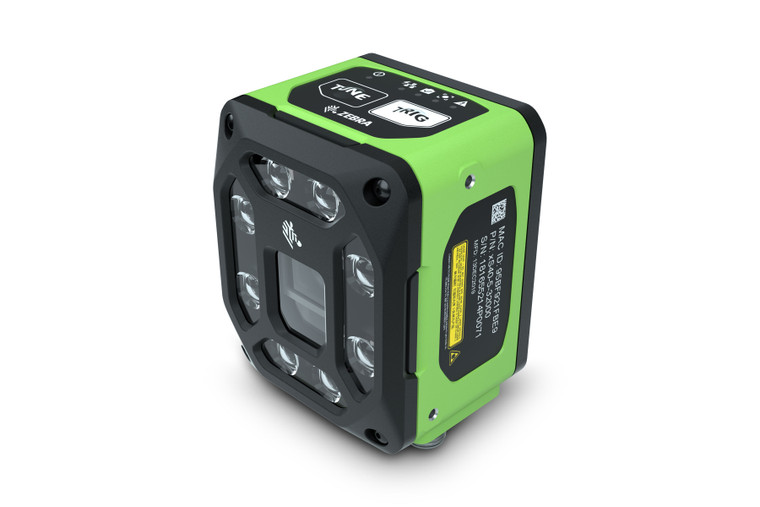

Zebra NS42-SR50X4-3C00W NS42 Smart Vision Sensor: 5MP, DL-OCR, DPM, Anomaly Detection

The Zebra NS42-SR50X4-3C00W is the top-tier configuration of the NS42 Smart Vision Sensor - a 5-megapixel, standard-range machine vision sensor with Zebra's full toolset: deep-learning OCR (DL-OCR), anomaly detection, DPM Full decoding, and the standard machine vision toolset. It reads 1D and 2D codes at high speed, verifies assembly, inspects for defects, and reads challenging printed and marked text, all on-board, with white illumination for high-contrast imaging on most surfaces.

Where the essential NS42 configurations cover standard machine vision and anomaly detection at 2.0 MP, the SR50X4 steps up to 5 MP resolution and adds fast 1D/2D decode plus full DPM (Direct Part Marking) reading and DL-OCR - making it the configuration to specify when a single device must handle high-resolution inspection, direct-part-mark traceability, and deep-learning text reading together.

What this configuration includes

Key capabilities

• Deep-Learning OCR (DL-OCR) - reads text and characters without training, including stressed, low-contrast, and distorted print that defeats traditional OCR.
• Anomaly detection - finds defects and abnormalities by comparing against reference-standard images, catching issues traditional rule-based inspection misses.
• DPM Full decoding - reads direct part marks (dot-peen, laser-etch) on metal and other difficult substrates for full traceability.
• ImagePerfect+ - captures up to 16 distinct images per trigger event, each with unique focus, exposure, and illumination settings.
• On-board processing - images are processed on the device (8 GB memory), not through external hardware or a PC, for faster cycle times.
• IP67-rated rugged housing - ultra-rugged aluminum body sealed against dust and water for heavy industrial, humid, and washdown environments.
• 360-degree status indicators - five built-in status LEDs plus a 360-degree indicator ring and adjustable beeper for at-a-glance operator feedback.

Typical applications

• Direct part mark traceability - reading dot-peen and laser-etched codes on machined and cast metal parts in automotive and aerospace.
• Pharmaceutical and medical device inspection - DL-OCR of lot/expiry codes, UDI Data Matrix reads, and anomaly detection on seals and packaging.
• Assembly verification - confirming correct component presence, orientation, and placement before downstream operations.
• Defect and surface inspection - anomaly detection on painted, coated, textured, or printed surfaces at 5 MP resolution.
• High-resolution label and print inspection - verifying print quality and readability of labels, cartons, and packaging.

At-a-glance specifications

Frequently asked questions

How is the NS42-SR50X4-3C00W different from the 2 MP NS42 models?

This configuration uses a 5 MP sensor (vs 2.0 MP on the essential models) and includes the full toolset - fast 1D/2D decode, DPM Full direct-part-mark reading, DL-OCR, and anomaly detection. The essential NS42 models cover standard machine vision and anomaly detection only. Choose the SR50X4 when you need high resolution plus direct-part-mark traceability and deep-learning text reading in one device.

What does the white illumination option mean, and when should I choose it over red?

White illumination (the -3C00W suffix) provides broad-spectrum lighting suited to color inspection, mixed-material surfaces, and general-purpose imaging. Red illumination (the -2C00W suffix) maximizes contrast for monochrome barcode and code reading on paper. Choose white for the widest range of inspection and OCR tasks; choose red when the job is primarily code reading on paper labels.

What software runs the NS42?

The NS42 runs Zebra Aurora Focus, a no-code/low-code job builder that guides new users through common inspection steps while giving experienced users fast job creation. No separate PC or external processing hardware is required - jobs run on-board the sensor.

Does it connect to a PLC?

Yes. The NS42 supports Ethernet with PoE, serial, USB-C, and industrial protocols including EtherNet/IP and PROFINET, so inspection results and decoded data report directly to a PLC or line controller.

Where can I get help specifying an NS42 for my application?

Automation Distribution is an authorized Zebra distributor and can match the right NS42 configuration - resolution, range, toolset, and illumination - to your inspection requirements. Call 1-888-600-3080 or use the contact form below.

Zebra, Aurora, and ImagePerfect are trademarks of Zebra Technologies Corporation. Specifications based on Zebra's published NS42 documentation; confirm current specifications with Zebra before ordering.
