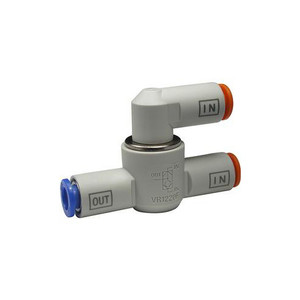

SMC 10-VR1220-02 Shuttle Valve, Clean Room
SMC
$22.80
series vr1210/1200 shuttle valve is a 3 ported valve with one output and 2 pneumatic signal and input ports. output is always supplied by high pressure inlet. the vr12**f series are interrupters for control of air pressure signal system lines. piping is possible in any position and the one-touch fittings make piping connections simple. time delay valve series vr2110 with its combination of adjustable orifice and fixed flow allows transmission of a pneumatic signal after a fixed time period.
- 3 port check valve
- max. operating pressure: 1.0mpa
- ambient and fluid temp: -5 to 60c
- effective area (cv): 0.38 to 0.81
