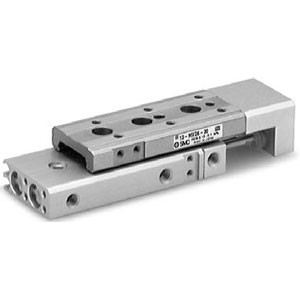

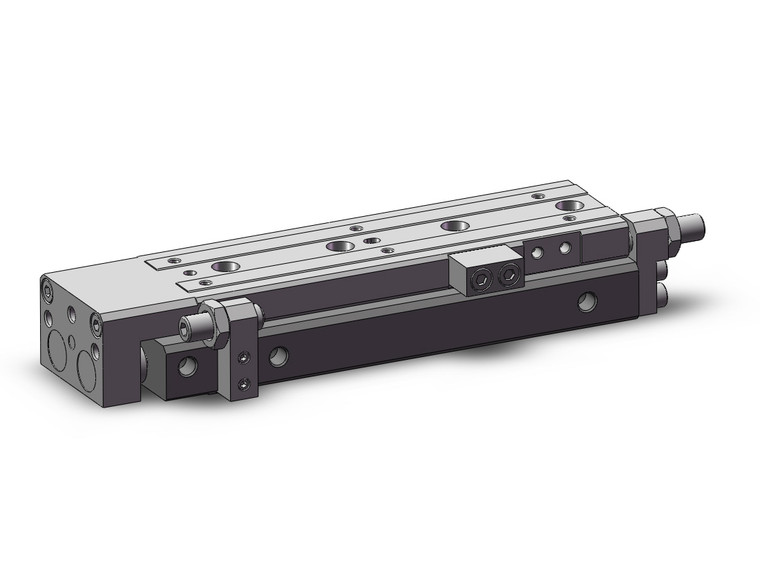

SMC 13-MXQ8L-50A-M9NL 13-MXQ Series Clean Series Air Slide Table
SMC
$687.20
The SMC 13-MXQ8L-50A-M9NL 13-MXQ Series Clean Series Air Slide Table is engineered for precision and durability. This advanced air slide table features an integrated guide rail and table design, ensuring seamless operation and enhanced stability. Utilizing a recirculating linear guide, it offers exceptional rigidity and precision, making it ideal for applications requiring high accuracy and reliability. Perfect for clean environments, this air slide table is a testament to SMC's commitment to quality and innovation in motion control solutions.
- Clean Series:
- Vacuum Suction Type (Special Treatment On Guide)
- Bore Size:
- Bore Size 8 mm
- Port Thread Type:
- M-thread( 6 To 16),Rc( 20, 25)
- Symmetric:
- Symmetric Type
- Cylinder Stroke:
- Standard Stroke 50 mm
- Adjuster Option:
- Both Ends Rubber Stopper
- Functional Option:
- Standard Type
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
