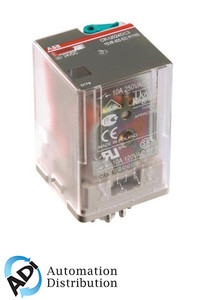

ABB 1SVR405621R1000 CR-U024DC2 General-Purpose Relay, DPDT, 24VDC, 10A with LED Indicator and Test Button

The ABB 1SVR405621R1000 CR-U024DC2 is a versatile and reliable general-purpose relay from the CR-U series, designed for a wide range of applications. This DPDT (Double Pole Double Throw) relay can handle up to 10 amps with a coil voltage of 24VDC. It features mechanical status indication and is available with an optional LED for visual operation confirmation. The relay includes an integrated test button for easy functionality checks and is equipped with 2 C/O (SPDT) contacts. Key specifications include a nominal coil voltage of 24 VDC, with a maximum current capacity of 10 amps. It offers various ratings for different voltages, including 1.5 amps at 220/240/277 VAC and 2 amps at 24/28/30 VDC. The relay is designed for plug-in mounting and uses a socket termination method. The enclosure is made of durable plastic, ensuring longevity and protection against environmental factors. Additional features include a status indicator, a push-to-test button, and a diode for circuit protection. The contact material is a robust silver nickel alloy, which provides excellent conductivity and resistance to corrosion. The relay's dimensions are 1.4 inches in height, 1.35 inches in width, and 2.6 inches in depth, with a net and gross weight of 2.88 ounces. Ideal for both industrial and commercial applications, the ABB 1SVR405621R1000 CR-U024DC2 relay combines functionality with reliability, making it a top choice for ensuring efficient and safe operations in various electrical systems.
