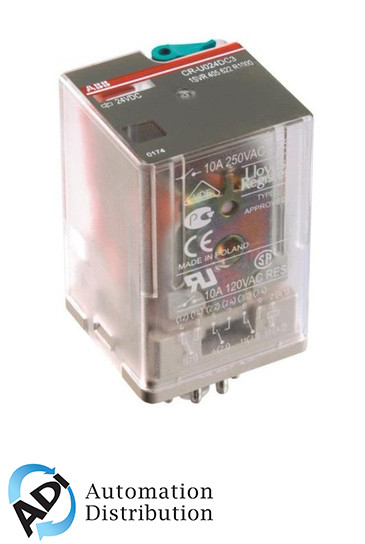

ABB 1SVR405622R1100 CR-U024DC3L General-Purpose Relay, 3PDT, 24 VDC, 10A, LED Indicator, Plug-In Mount
ABB
$18.80
The ABB 1SVR405622R1100 CR-U024DC3L is a versatile general-purpose relay designed for a wide range of industrial applications. It features 3PDT contacts with a nominal coil voltage of 24 VDC and a maximum current capacity of 10 amps. The relay is equipped with a mechanical status indicator and an LED for visual confirmation of operation, ensuring reliable performance. It offers multiple configurations with either 2 C/O (SPDT) or 3 C/O (SPDT) contacts, each capable of handling 10 A. Key specifications include a rating of 1.5 amps at 220/240/277 VAC and 2 amps at 24/28/30 VDC. Designed for plug-in mounting, it uses a socket for termination and is housed within a durable plastic enclosure. The unit features 11 electrical connections and includes a diode for enhanced performance. The relay supports a push-to-test button for easy testing and commissioning, although it does not have a mechanical latch. Constructed with a robust silver nickel alloy contact material, it ensures long-lasting reliability. The dimensions are 1.4 inches in height, 1.3 inches in width, and 2.6 inches in depth, with a net and gross weight of 2.96 ounces. Rated IP40 for protection against solid objects, this relay is ideal for general-purpose industrial use, combining functionality with high performance.
- Spec Sheet:
- View
