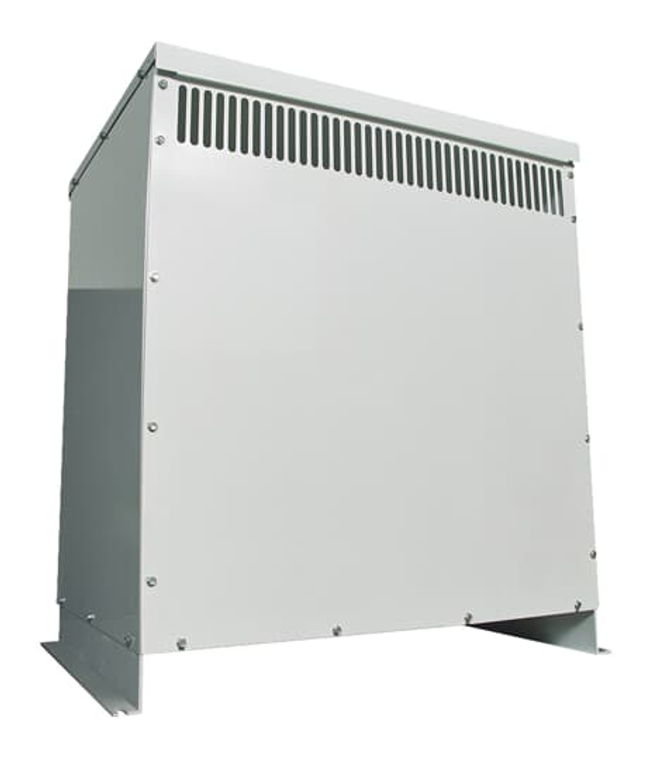

ABB 9T10A1184 75Kva Low-Voltage Dry-Type Transformer - UL Listed, DOE Compliant, Seismic Qualified
ABB
$8,929.82
The ABB 9T10A1184 is a robust 3A, 75Kva, 480-240D, 150C, N2, K1, Doe Low-Voltage General Purpose Dry-Type Transformer designed for longevity and efficiency. Built to last over 20 years, this transformer is UL Listed and meets DOE 2016 efficiency standards, ensuring energy efficiency and reliability. It features a Quiet Performance-Core with coil assemblies mounted on rubber isolation pads to minimize noise, making it ideal for environments where sound levels are a concern. The single-piece front and back design allows for easy installation and maintenance. This transformer is available with either aluminum or copper windings and offers all three temperature rise ratings. Additionally, it is qualified to meet the seismic requirements of IEEE-693-2005, IBC-2021, and CBC 2022, ensuring durability and safety in seismic zones.
- Secondary Voltage:
- 240/120
- Primary Voltage:
- 480
- Frequency Rating:
- 60
- Kva Rating:
- 75
- Temperature Rating:
- 40
- Efficiency:
- DOE 2016
- Phase:
- 3
- Spec Sheet:
- View
