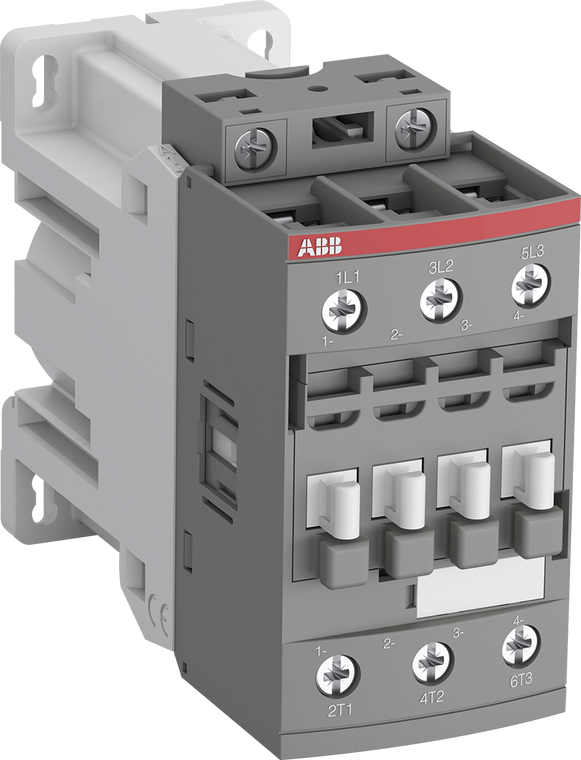

ABB AF26Z-30-00-30 3-Pole Contactor with 24V DC Coil and Advanced AF Technology for High-Performance Industrial Applications
ABB
$138.15
The ABB AF26Z-30-00-30 is a robust 3-pole contactor designed for high-performance applications, capable of handling up to 690 V IEC or 600 UL. It efficiently controls motors up to 11 kW at 400 V AC (AC-3) or 15 hp at 480 V UL, and can switch power circuits up to 45 A (AC-1) or 45 A UL general use. Featuring advanced AF technology, this contactor is equipped with a 24 V DC coil that significantly reduces holding coil consumption to just 1.7 W. This allows for direct control by a PLC-output of 250 mA 24 V DC, eliminating the need for additional interface relays and reducing panel energy consumption. The built-in surge protection ensures reliable operation even in unstable networks. The AF26Z-30-00-30's block type design allows for easy expansion with add-on auxiliary contact blocks and a wide range of accessories, making it a versatile and compact solution for various industrial applications.
- Rated Control Circuit Voltage:
- DC Operation 24 V
- Terminal Type:
- Screw Terminals
- Spec Sheet:
- View
