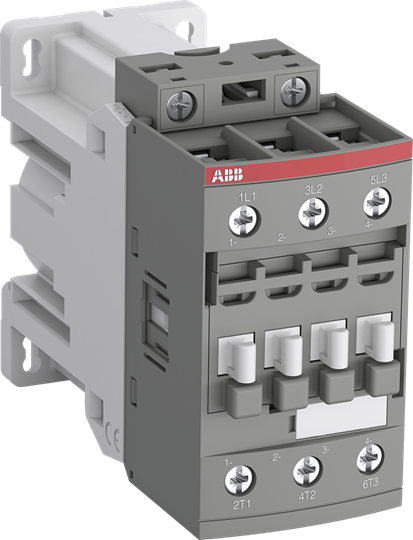

ABB AF38Z-30-00-30 3-Pole Contactor with 24V DC Coil and Surge Suppression for Efficient Power Circuit Control
ABB
$207.23
The ABB AF38Z-30-00-30 is a robust 3-pole contactor designed for efficient control of power circuits up to 690 V AC and 220 V DC. Ideal for managing 3-phase motors and non-inductive or slightly inductive loads, this contactor features a 24 V DC electronic coil interface with built-in surge suppression. This design ensures reduced holding coil consumption, down to 1.7 W, promoting low panel energy consumption. It allows for direct control by PLC-output with a minimum of 250 mA at 24 V DC, eliminating the need for additional interface relays. The AF38Z-30-00-30 contactor requires polarity respect on coil terminals (A1+ and A2-) and is part of the AF series, known for its block type design. It includes 3 main poles and offers the flexibility of front and side-mounted add-on auxiliary contact blocks. Compliant with IEC standards, it supports motors up to 18.5 kW / 400 V AC (AC-3) or 25 hp / 480 V UL, and can switch power circuits up to 50 A (AC-1) or 50 A UL general use. The contactor's AF technology ensures reliable operation even in unstable networks, with built-in surge protection for a compact and efficient solution. A wide range of accessories is available to extend its functionality, making it a versatile choice for various applications.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- DC Operation 24 V
- Spec Sheet:
- View
