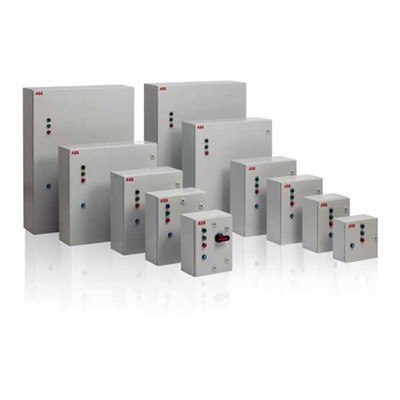

ABB afn1 nr 3ph nc n3r/4/12 200/120v ste pearl nema non-combo af range AFN112-AVJ
ABBOverview
ABB
AC Non-Reversing, AF Series
Item# AFN112-AVJ
Enclosed Starter, NEMA 1/2R/4/12, 208VAC, 7.5HP, 24.0-29.0A, 120 VAC Cntrl Xfrm, HAND/OFF/AUTO Switch,
Specifications
Item Number:
AFN112-AVJ
UPC:
804325783736
Brand:
ABB
Item Category:
Starters
Subcategory:
AC Non-Reversing
Series:
AF
Style:
Enclosed
Industry Standard:
NEMA
Poles:
3NO
Coil Voltage:
200~208 VAC
Motor FLA (Amps):
24~29
Continuous Amps Rating:
27 Amps
Max HP 200/208V 3PH:
7.5 Horsepower
Max HP 230/240V 3PH:
7.5 Horsepower
Max HP 460/480V 3PH:
10 Horsepower
Max HP 575/600V 3PH:
10 Horsepower
Auxiliary Contacts:
1NO; 1NC
Overload Type:
Thermal
Overload Series:
TF42
Termination:
Screw
NEMA Frame Size:
1
Mounting:
Surface
On/Off Switch:
No
Start Stop Switch:
No
HOA Switch:
Yes
On (Run) Pilot Light:
Yes
Fault Indicator Light:
No
Control Trans. Included:
Yes
Comments:
Control Cover Nameplate - HAND-OFF-AUTO/ON Pilot Light
Net Weight:
1 lb
