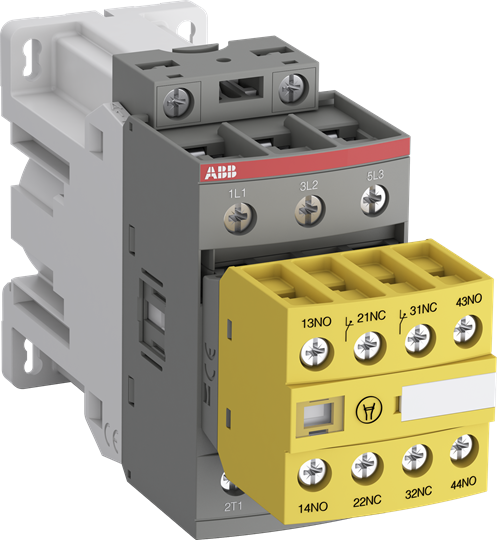

ABB AFS26Z-30-22-30 Contactor: 3-Pole, 2NO/2NC, 24V DC for Enhanced Machine Safety and Efficiency
ABB
$239.11
The ABB AFS26Z-30-22-30 Afs26Z contactor is engineered for optimal machine safety applications, featuring a robust 3-pole design suitable for both IEC and UL standards. It comes equipped with fixed front-mounted auxiliary contact blocks, offering 2 normally open (N.O) and 2 normally closed (N.C) contacts, ensuring reliable monitoring and control of circuits. The contactor is designed to handle motors up to 11 kW at 400 V AC (AC-3) or 15 hp at 480 V UL, and can switch power circuits up to 45 A (AC-1) or 45 A UL general use.
The AFS26Z-30-22-30 is distinguished by its mechanically linked and mirror contacts, which enhance system safety by guaranteeing accurate contactor status. Its control circuit features an electronic coil interface, specifically designed for direct control by PLC-output with a dedicated 24 V DC, ensuring low holding consumption and reduced panel energy usage. The contactor's yellow housing allows for easy identification, while the built-in surge suppression provides a compact and efficient solution.
Compliant with EN ISO 13849 and EN 62061 standards, this contactor ensures the safe operation of machinery and equipment. Its block type design allows for easy integration and extension with additional auxiliary contact blocks and a wide range of accessories, making it a versatile choice for machine manufacturers.
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 24 V
- Terminal Type:
- Screw Terminals
- Spec Sheet:
- View
