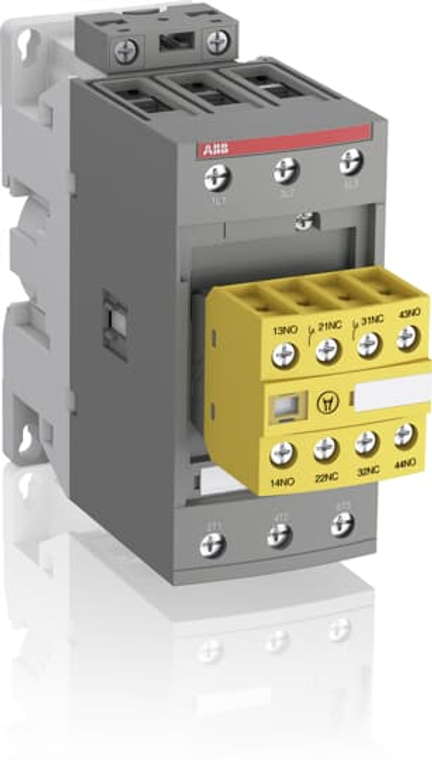

ABB AFS52-30-22-11 Afs52 Contactor: 3-Pole, 2NO+2NC, 24-60VAC/20-60VDC for Machine Safety Applications
ABB
$334.32
The ABB AFS52-30-22-11 Afs52 contactor is engineered for optimal performance in machine safety applications. This robust 3-pole contactor, suitable for 690 V IEC or 600 V UL, features fixed 2 N.O + 2 N.C. front-mounted auxiliary contact blocks with screw connections, making it ideal for controlling motors up to 22 kW / 400 V AC (AC-3) or 40 hp / 480 V UL. It efficiently switches power circuits up to 100 A (AC-1) or 80 A UL general use. Designed to integrate seamlessly into machine manufacturer systems, it complies with key standards EN ISO 13849 and EN 62061, ensuring the safe operation of machinery and equipment. The contactor's yellow low energy auxiliary contact block provides clear status feedback, essential for machine safety applications. With AF technology, it offers a wide control voltage range (24 ... 60 V), accommodating large voltage variations and reducing panel energy consumption. Built-in surge protection enhances its compact design, while the block type design allows for easy extension with add-on auxiliary contact blocks and a variety of accessories.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V
- Spec Sheet:
- View
