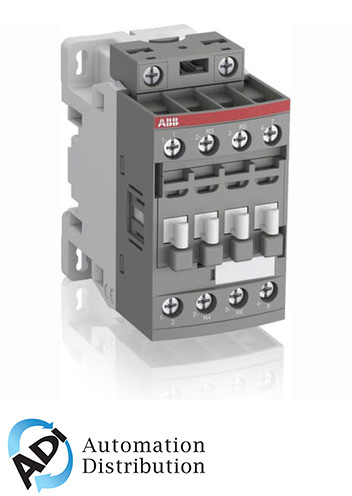

ABB AF09-22-00-14 4-Pole Contactor, 25A, 250-500V AC/DC Versatile Power Circuit Control with Built-in Surge Protection
ABB
$69.75
The ABB AF09-22-00-14 is a versatile 4-pole contactor designed for controlling power circuits up to 690 V AC and 440 V DC. Ideal for managing non-inductive or slightly inductive loads such as resistance furnaces, this contactor features an electronic coil interface that accommodates a wide range of control voltages from 24 to 500 V AC/DC. With only four coils needed to cover these voltages, it simplifies global applications without requiring coil changes. The AF09-22-00-14 contactor includes built-in surge protection, eliminating the need for additional suppressors, and is designed with 2 N.O. + 2 N.C. main poles. It supports both AC and DC operation and offers a variety of accessories for customization. This contactor is capable of controlling motors up to 4 kW at 400 V AC and switching power circuits up to 25 A, making it a reliable choice for diverse industrial applications. Its block type design allows for easy extension with auxiliary contact blocks, ensuring flexibility and efficiency in any setup.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 250 ... 500 V
- Spec Sheet:
- View
