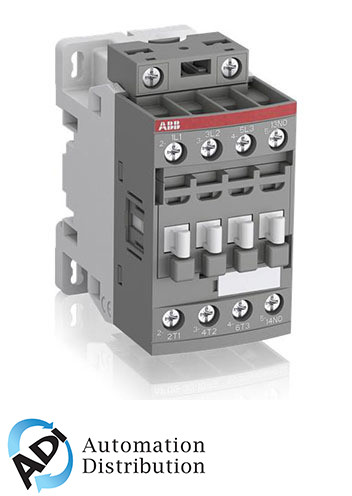

ABB AF09-30-10-12 3-Pole Contactor with Wide Voltage Range and Built-In Surge Protection
ABB
$71.85
The ABB AF09-30-10-12 is a versatile 3-pole contactor designed for controlling power circuits up to 690 V AC and 220 V DC, making it ideal for managing 3-phase motors and non-inductive or slightly inductive loads. This contactor features an innovative electronic coil interface that accommodates a wide range of control voltages, from 48 to 130 V AC/DC, allowing for seamless integration into various systems without the need for coil changes. The AF09-30-10-12 is equipped with a built-in auxiliary contact and screw terminals, capable of controlling motors up to 4 kW at 400 V AC or 5 hp at 480 V UL, and switching power circuits up to 25 A. Its block type design supports easy expansion with add-on auxiliary contact blocks and a variety of accessories. With built-in surge protection, this contactor ensures reliable performance and reduced energy consumption, even in unstable networks. The AF09 series is compliant with IEC standards, offering mechanically-linked auxiliary contacts and N.C. mirror contacts for enhanced safety and functionality.
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 48 ... 130 V
- Terminal Type:
- Screw Terminals
- Spec Sheet:
- View
