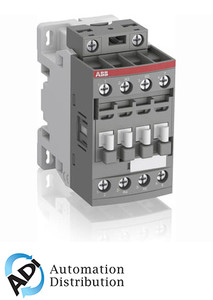

ABB AF09-40-00-13 4-Pole Contactor, 100-250V AC/DC, Versatile Control for Industrial Applications
ABB
$66.97
The ABB AF09-40-00-13 is a versatile 4-pole contactor designed for controlling power circuits up to 690 V AC and 440 V DC. Ideal for managing non-inductive or slightly inductive loads such as resistance furnaces, this contactor features an electronic coil interface that accommodates a wide range of control voltages from 24 to 500 V AC/DC. With only four coils needed to cover these voltages, the AF09-40-00-13 simplifies global applications by eliminating the need for coil changes. Built-in surge protection ensures reliable operation without additional suppressors. The block type design includes 4 N.O. main poles and options for front and side-mounted auxiliary contact blocks, compliant with IEC standards. Suitable for both AC and DC control circuits, this contactor supports motors up to 4 kW at 400 V AC and can switch power circuits up to 25 A. Its wide control voltage range and energy-efficient design make it an excellent choice for reducing panel energy consumption and ensuring stable performance in fluctuating networks. Expandable with a variety of accessories, the AF09-40-00-13 offers a compact and adaptable solution for diverse industrial applications.
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 100 ... 250 V
- Terminal Type:
- Screw Terminals
- Spec Sheet:
- View
