Overview
ABB
AC Reversing IEC Contactors, STAR Series

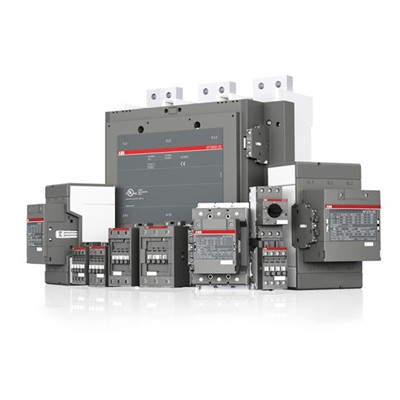

Item# AF09R-30-22-11 - REV,3P,9A,20-60VDC/24-60VAC,2/2
STAR Series Information
- AF Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used for Different Control Voltages Used Worldwide without Any Coil Change
- The Built-In N.C. Auxiliary Contact Is a Mirror Contact in Compliance with Annex F of IEC 60947-4-1
- AF Contactors Have Built-In Surge Protection and Do Not Require Additional Surge Suppressors
- Only Four Coils Cover Control Voltages between 24-500 V 50/60 Hz or 20-500 V DC
- Electronic Coil Interface Accepts a Wide Control Voltage Range
Specifications
Item Number:
AF09R-30-22-11
UPC:
804325862394
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Reversing IEC
Series:
STAR
Nominal Coil Voltage:
24 VAC;48 VAC;24 VDC;48 VDC
Coil Voltage:
2460VAC2060VDC
Coil Type:
Electronic
Poles:
3NO
Auxiliary Contacts:
1NO; 1NC
Termination:
Screw
Max HP 200/208V 3PH:
2 Horsepower
Max HP 230/240V 3PH:
2 Horsepower
Max HP 460/480V 3PH:
5 Horsepower
Max HP 575/600V 3PH:
7.5 Horsepower
General Purpose (AC1):
25 Amps
Approvals:
cULus
Net Weight:
5 lb
