Description
Overview
Abb

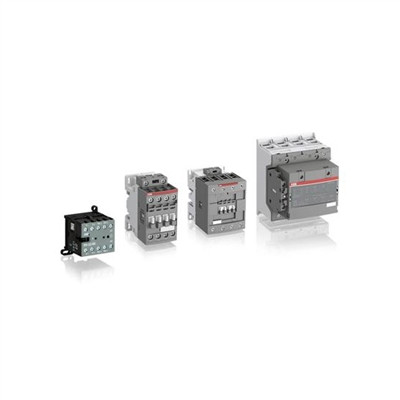

Ac Non-Reversing Iec Contactors, Star Z Series
Item# Af09Z-22-00-22 - Contactor, 4-P 2No/2Nc, 48-130Vac/Dc Coil, No Aux Contacts Included, Low Power Coil
Star Z Series Information
- Af Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used For Different Control Voltages Used Worldwide Without Any Coil Change
- Afz Contactors Allow Direct Control By Plc-Output Greater Than 24 Vdc 500 Ma And Obtain Reduced Holding Coil Consumption
- Electronic Coil Interface Accepts A Wide Control Voltage Range And Manages Large Control Voltage Variations
- The Built-In N.C. Auxiliary Contact Is A Mirror Contact In Compliance With Annex F Of Iec 60947-4-1
- Af Contactors Have Built-In Surge Protection And Do Not Require Additional Surge Suppressors
- Afz Contactors Withstand Short Dips And Voltage Interruptions (Semi F47-0706 Compliance)
- Only Four Coils Cover Control Voltages Between 24-500 V 50/60 Hz Or 20-500 V Dc
Specifications
Item Number: &Nbsp;
Af09Z-22-00-22
Upc: &Nbsp;
804325539159
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Star Z
Coil Voltage:
48~130 Vac/48~130 Vdc
Coil Type:
Electronic
Poles:
2No; 2Nc
Auxiliary Contacts:
None
Termination:
Screw
General Purpose (Ac1):
25 Amps
Approvals:
Culus
&Nbsp;&Nbsp;Net Weight:
11.3398 Oz
&Nbsp;&Nbsp;Gross Weight:
11.3398 Oz
