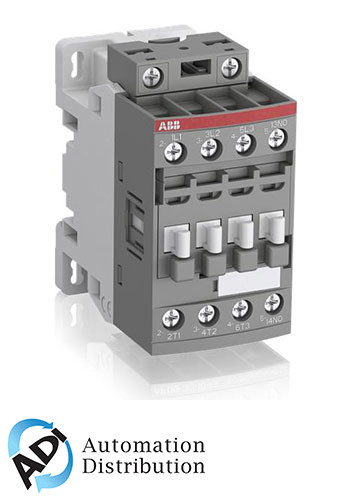

ABB AF09Z-30-10-21 3-Pole Contactor with 1NO Auxiliary Contact, 24-60VAC, 220V DC Control, SEMI F47-0706 Compliant
ABB
$76.74
The ABB AF09Z-30-10-21 3-Pole Contactor is designed for controlling power circuits up to 690 V AC and 220 V DC, making it ideal for managing 3-phase motors and non-inductive or slightly inductive loads. This contactor features an electronic coil interface that accepts a wide range of control voltages, from 24 to 250 V 50/60 Hz or 12 to 250 V DC, allowing for global compatibility without the need for coil changes. It is equipped with a built-in surge protection system, eliminating the need for additional surge suppressors, and is compliant with SEMI F47-0706 standards, ensuring resilience against short voltage dips and sags. The AF09Z contactor includes 3 main poles and 1 built-in auxiliary contact, with options for front and side-mounted add-on auxiliary contact blocks. It supports direct control by PLC-output with a minimum of 24 V DC 500 mA and offers reduced holding coil consumption. The contactor's design adheres to IEC standards, featuring mechanically-linked auxiliary contacts and N.C. mirror contacts for enhanced safety and reliability. A wide range of accessories is available to complement the AF09Z-30-10-21, making it a versatile choice for various industrial applications.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V
- Spec Sheet:
- View
