Abb

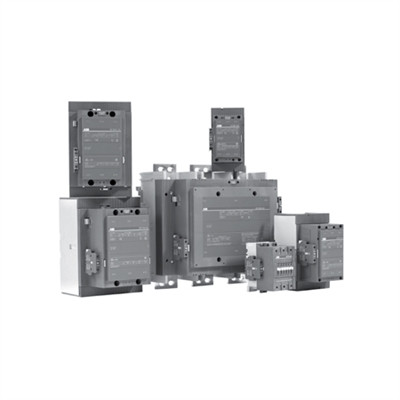

Ac Non-Reversing Iec Contactors, Af Series
Item# Af09Zb-30-01-23
Af09Zb-30-01-23 100-250V50/60Hz-Dc
Specifications
Item Number: &Nbsp;
Af09Zb-30-01-23
Upc: &Nbsp;
8886142473910
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
100~250 Vac/Vdc
Coil Type:
Magnetic
Poles:
3No
Auxiliary Contacts:
1Nc
Termination:
Screw
General Purpose (Ac1):
25 Amps
Ul Motor Switching (Ac3):
9 Amps
Max Hp 200/208V 3Ph:
2 Horsepower
Max Hp 230/240V 3Ph:
2 Horsepower
Max Hp 460/480V 3Ph:
5 Horsepower
Max Hp 575/600V 3Ph:
7.5 Horsepower
H X W X D:
3.15 In X 1.77 In X 3.03 In
&Nbsp;&Nbsp;Net Weight:
10.93 Oz
