Description
Overview
Abb

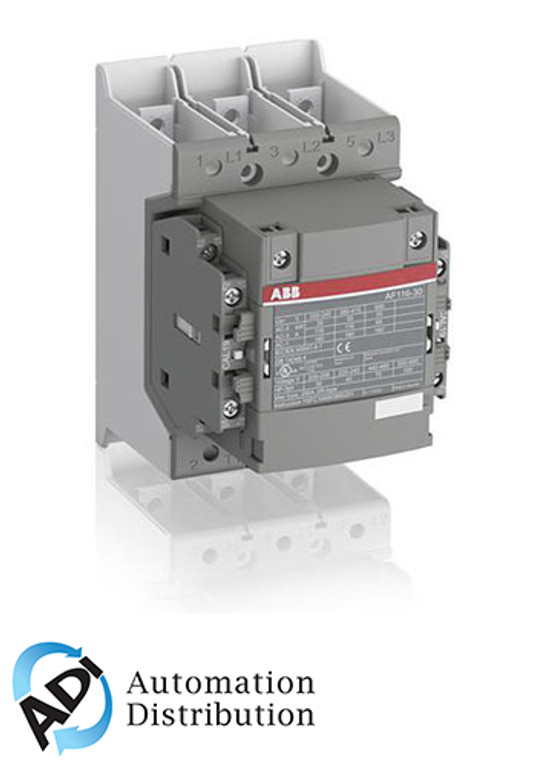

Ac Non-Reversing Iec Contactors, Af Series
Item# Af116-30-22B-13
Ctr,3P,104A,100-250Vac/Dc,2/2
Specifications
Item Number: &Nbsp;
Af116-30-22B-13
Upc: &Nbsp;
888614119925
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
100~250 Vac/Vdc
Coil Type:
Magnetic
Poles:
3No
Auxiliary Contacts:
2No; 2Nc
Termination:
Box Lug
General Purpose (Ac1):
160 Amps
Ul Motor Switching (Ac3):
116 Amps
Max Hp 200/208V 3Ph:
30 Horsepower
Max Hp 230/240V 3Ph:
40 Horsepower
Max Hp 460/480V 3Ph:
75 Horsepower
Max Hp 575/600V 3Ph:
100 Horsepower
Comments:
With Bar Connection
H X W X D:
5.91 In X 3.54 In X 4.96 In
&Nbsp;&Nbsp;Net Weight:
3 Lb 5 Oz
