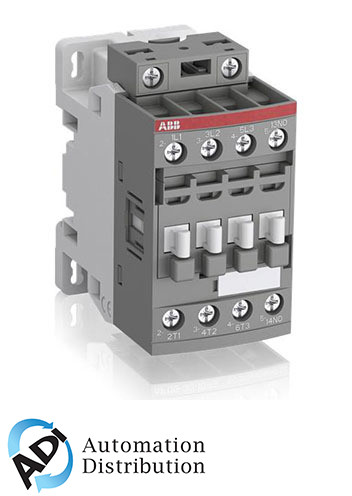

ABB AF12-30-01-11 3-Pole Contactor with Electronic Coil Interface, 24-60VAC, Built-in Surge Protection, and Auxiliary Contact
ABB
$83.71
The ABB AF12-30-01-11 is a versatile 3-pole contactor designed for controlling power circuits up to 690 V AC and 220 V DC, making it ideal for managing 3-phase motors and non-inductive or slightly inductive loads. This contactor features an innovative electronic coil interface that accommodates a wide range of control voltages, from 24 to 500 V AC/DC, allowing for global compatibility without the need for coil changes. With built-in surge protection, the AF12-30-01-11 eliminates the need for additional surge suppressors, providing a compact and efficient solution. The contactor includes 3 main poles and 1 built-in auxiliary contact, with options for front and side-mounted add-on auxiliary contact blocks. It is compliant with IEC standards for mechanically-linked auxiliary contacts and N.C. mirror contacts. The AF12-30-01-11 is not suitable for direct control by PLC-output but offers a wide range of accessories for enhanced functionality. This contactor is capable of controlling motors up to 5.5 kW at 400 V AC or 7-1/2 hp at 480 V UL, and can switch power circuits up to 28 A. Its block type design ensures easy extension and adaptability for various applications.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V
- Spec Sheet:
- View
