ABB AF140-30-00-11 3-Phase Contactor, 130A, 20-60V DC/24-60V AC, 3-Pole Design for Motor Control and Distribution Applications
ABB
$597.12
(No reviews yet)
Write a Review
Write a Review
ABB

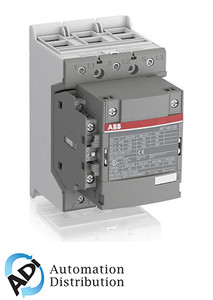

ABB AF140-30-00-11 3-Phase Contactor, 130A, 20-60V DC/24-60V AC, 3-Pole Design for Motor Control and Distribution Applications
The ABB AF140-30-00-11 is a versatile 3-phase contactor designed for a variety of applications including motor starting, isolation, by-pass, and distribution up to a maximum of 690 V. It features a robust 3-pole design suitable for controlling motors up to 75 kW at 400 V AC (AC-3) or 100 hp at 480 V UL, and is capable of switching power circuits up to 200 A (AC-1) or 200 A UL general use. The contactor operates efficiently within a wide control voltage range of 24-60 V AC/DC, accommodating both 50 and 60 Hz frequencies. This flexibility is enhanced by AF technology, which manages large control voltage variations, reduces panel energy consumption, and ensures reliable operation even in unstable networks. Built-in surge protection provides a compact and efficient solution, while the block type design allows for easy expansion with add-on auxiliary contact blocks and a wide range of accessories.
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V
- Terminal Type:
- Double Clamp
- Spec Sheet:
- View
