Description
Overview
Abb
Ac Non-Reversing Iec Contactors, Star Series

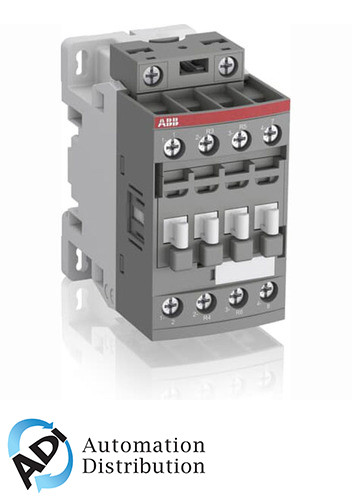

Item# Af16-22-00-12 - Contactor, 4-P 2No/2Nc, 48-130Vac/Dc Coil, No Aux Contacts
Star Series Information
- Af Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used For Different Control Voltages Used Worldwide Without Any Coil Change
- The Built-In N.C. Auxiliary Contact Is A Mirror Contact In Compliance With Annex F Of Iec 60947-4-1
- Af Contactors Have Built-In Surge Protection And Do Not Require Additional Surge Suppressors
- Only Four Coils Cover Control Voltages Between 24-500 V 50/60 Hz Or 20-500 V Dc
- Electronic Coil Interface Accepts A Wide Control Voltage Range
Specifications
Item Number: &Nbsp;
Af16-22-00-12
Upc: &Nbsp;
8043255391810
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Star
Coil Voltage:
48~130 Vac/48~130 Vdc
Coil Type:
Electronic
Poles:
2No; 2Nc
Auxiliary Contacts:
None
Termination:
Screw
General Purpose (Ac1):
30 Amps
Approvals:
Culus
&Nbsp;&Nbsp;Net Weight:
9.9337 Oz
&Nbsp;&Nbsp;Gross Weight:
9.9337 Oz
