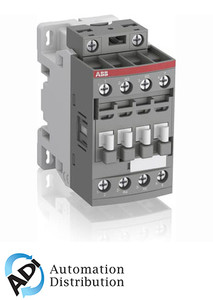

ABB AF16-40-00-11 4-Pole Contactor, 24-60VAC/20-60VDC, with Built-in Surge Protection and Global Voltage Compatibility
ABB
$113.00
(No reviews yet)
Write a Review
Write a Review
ABB
ABB AF16-40-00-11 4-Pole Contactor, 24-60VAC/20-60VDC, with Built-in Surge Protection and Global Voltage Compatibility
The AF16-40-00-11 is a versatile 4-pole contactor designed for controlling power circuits up to 690 V AC and 440 V DC. Ideal for managing non-inductive or slightly inductive loads, such as resistance furnaces, this contactor features an electronic coil interface that accommodates a wide range of control voltages from 24-500 V 50/60 Hz or 20-500 V DC. This flexibility allows for global application without the need for coil changes. The AF16-40-00-11 is equipped with built-in surge protection, eliminating the need for additional surge suppressors. Its block type design includes 4 N.O. main poles and offers the option for front and side-mounted add-on auxiliary contact blocks. The contactor is suitable for both AC and DC operation and supports a variety of accessories. Note that this model is not suitable for direct control by PLC-output and availability may vary by country. With the ability to control motors up to 7.5 kW / 400 V AC and switch power circuits up to 30 A, this contactor is a reliable choice for reducing panel energy consumption and ensuring stable operations in fluctuating networks.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V
- Spec Sheet:
- View
