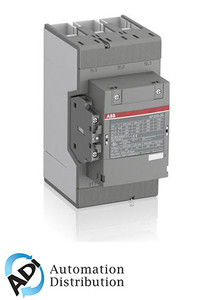

ABB AF205-30-11-13 3-Phase Contactor, 192A, 100-250V AC/DC, with Auxiliary Contacts and Surge Protection
ABB
$814.06
The ABB AF205-30-11-13 is a versatile 3-phase contactor designed for a variety of applications including motor starting, isolation, by-pass, and distribution up to a maximum of 1000 V. It features a wide control voltage range of 100-250 V, accommodating both AC and DC power sources, and operates at 50/60 Hz. This contactor is equipped with pre-mounted auxiliary contacts and main circuit bars, making it capable of controlling motors up to 110 kW at 400 V AC (AC-3) or 150 hp at 480 V UL. It can switch power circuits up to 350 A (AC-1) or 300 A for UL general use. The AF technology incorporated in this contactor allows it to handle large control voltage variations, reducing energy consumption and ensuring reliable operation even in unstable networks. Additionally, it includes built-in surge protection, providing a compact and efficient solution. The block type design of the AF contactor allows for easy extension with add-on auxiliary contact blocks and a wide range of accessories, enhancing its adaptability for various industrial needs.
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 100 ... 250 V
- Terminal Type:
- Main Circuit: Bars
- Spec Sheet:
- View
