ABB
AC Non-Reversing IEC Contactors, STAR Series

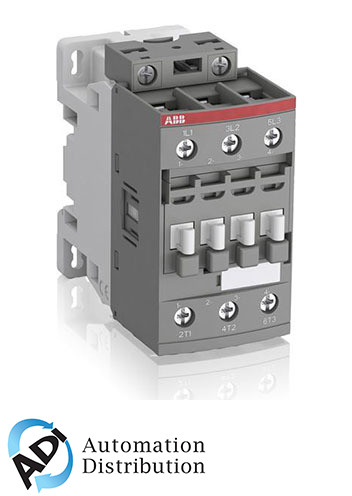

Item# AF26-30-00-11 - Contactor, 3-P N/O, 24-60AC/20-60DC Coil, No Aux Contacts Included, AC3=26A, AC1=45A
STAR Series Information
- AF Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used for Different Control Voltages Used Worldwide without Any Coil Change
- The Built-In N.C. Auxiliary Contact Is a Mirror Contact in Compliance with Annex F of IEC 60947-4-1
- AF Contactors Have Built-In Surge Protection and Do Not Require Additional Surge Suppressors
- Only Four Coils Cover Control Voltages between 24-500 V 50/60 Hz or 20-500 V DC
- Electronic Coil Interface Accepts a Wide Control Voltage Range
Specifications
Item Number:
AF26-30-00-11
UPC:
804325538701
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Non-Reversing IEC
Series:
STAR
Coil Voltage:
24~60 VAC/20~60 VDC
Coil Type:
Electronic
Poles:
3NO
Auxiliary Contacts:
None
Termination:
Screw
General Purpose (AC1):
45 Amps
UL Motor Switching (AC3):
26 Amps
Max HP 115V 1PH:
2 Horsepower
Max HP 230/240V 1PH:
3 Horsepower
Max HP 230/240V 3PH:
7.5 Horsepower
Max HP 460/480V 3PH:
15 Horsepower
Max HP 575/600V 3PH:
20 Horsepower
Approvals:
cULus
H x W x D:
3.4 in x 3.45 in x 1.75 in
Net Weight:
11.8388 OZ
Gross Weight:
11.8388 OZ
