ABB

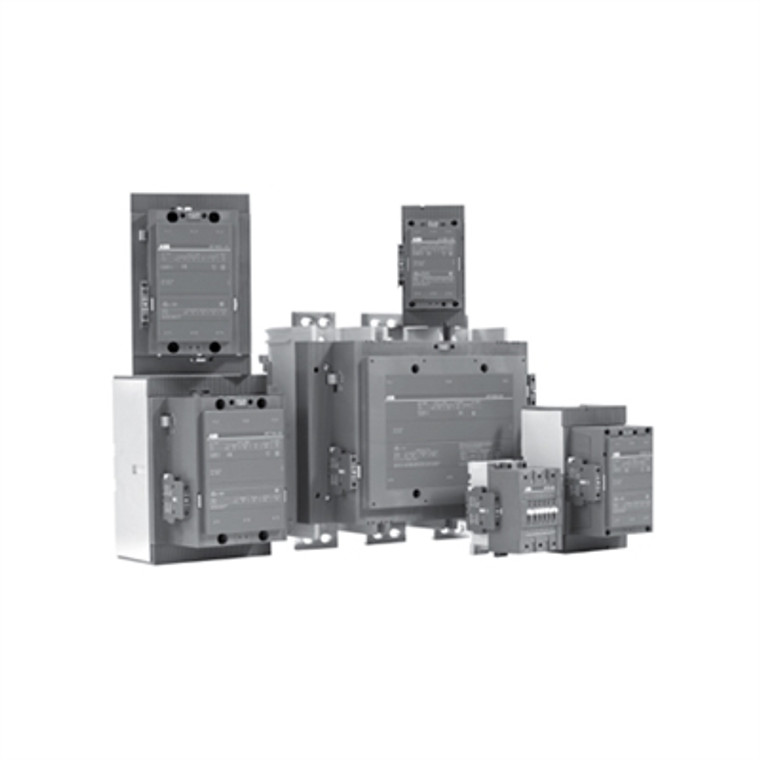

AC Reversing NEMA Contactors, AF Series
Item# AF265N5R-3022-12
N.REV SZ5 48-130VAC/DC 2/2
Specifications
Item Number:
AF265N5R-3022-12
UPC:
888614237803
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Reversing NEMA
Series:
AF
NEMA Frame Size:
5
Coil Voltage:
48~130 VAC/VDC
Poles:
3NO
NEMA Continuous Amps (I):
270 Amps
Nominal Coil Voltage:
48 VAC;120 VAC;48 VDC;120 VDC
Coil Type:
Magnetic
Auxiliary Contacts:
2NO; 2NC
Termination:
Screw
Max HP 230/240V 3PH:
100 Horsepower
Max HP 460/480V 3PH:
200 Horsepower
Max HP 575/600V 3PH:
200 Horsepower
Approvals:
UL;CSA
